Designed for total immersion and comfort, the VR04 HD FPV Goggles feature a spacious, glasses‑friendly interior so you never have to remove your eyewear, plus contoured face padding and a soft rubber nose bridge that block outside light for focused, extended sessions. The VR04 HD comes with a 2600mAh battery for 3‑hour runtime, while the VR04 HD Pro upgrades to a 3800mAh battery for 4‑hour runtime and supports live feed output to external displays via a Type-C to HDMI cable. Both models offer one‑button 1080p recording directly to a microSD card (up to 1TB), letting you effortlessly capture and relive every flight in crisp detail. Fully compatible with the P1 Air Unit, they give you the flexibility to build your own setup or fly bind‑and‑fly models—delivering a premium, comfortable, and immersive FPV experience for every pilot.

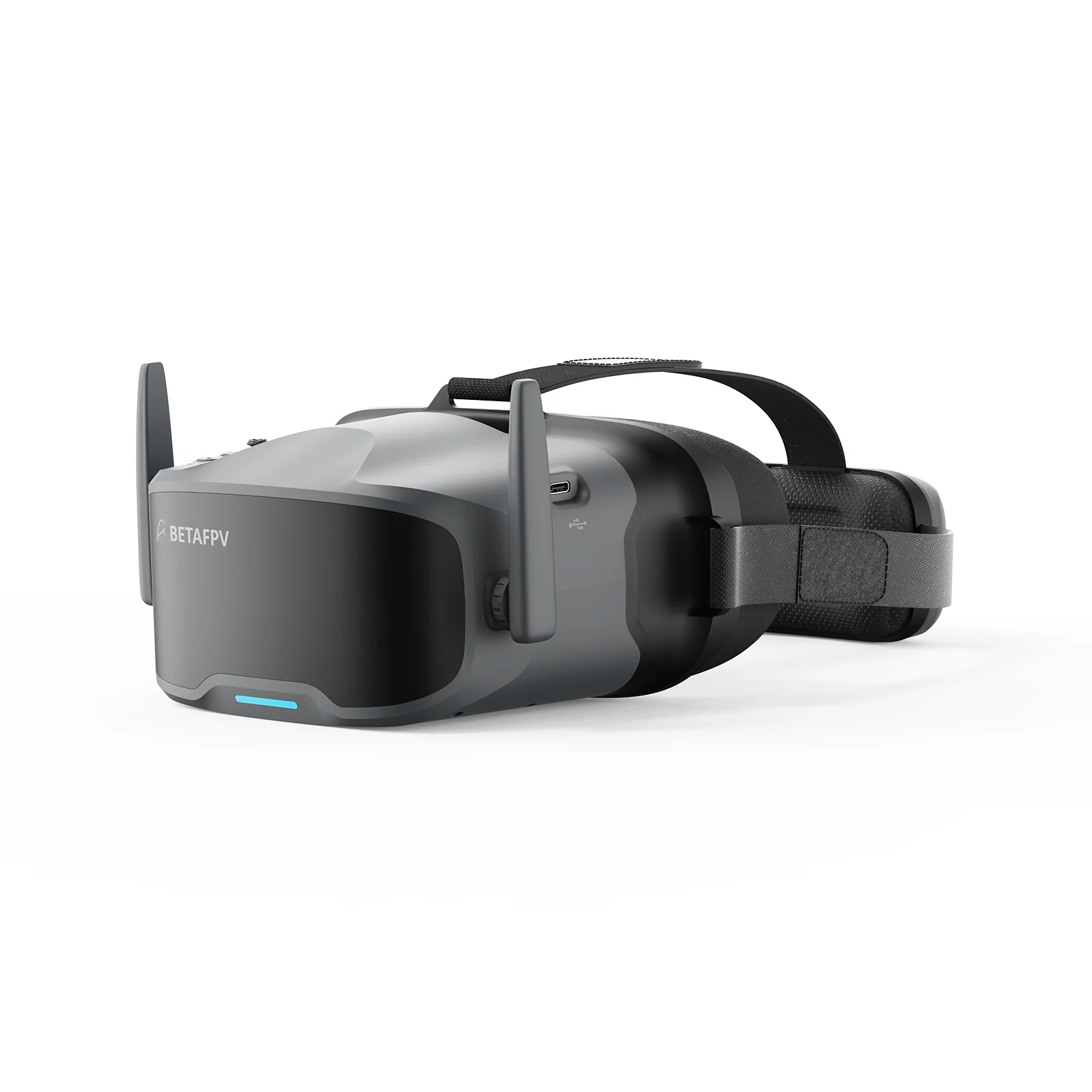

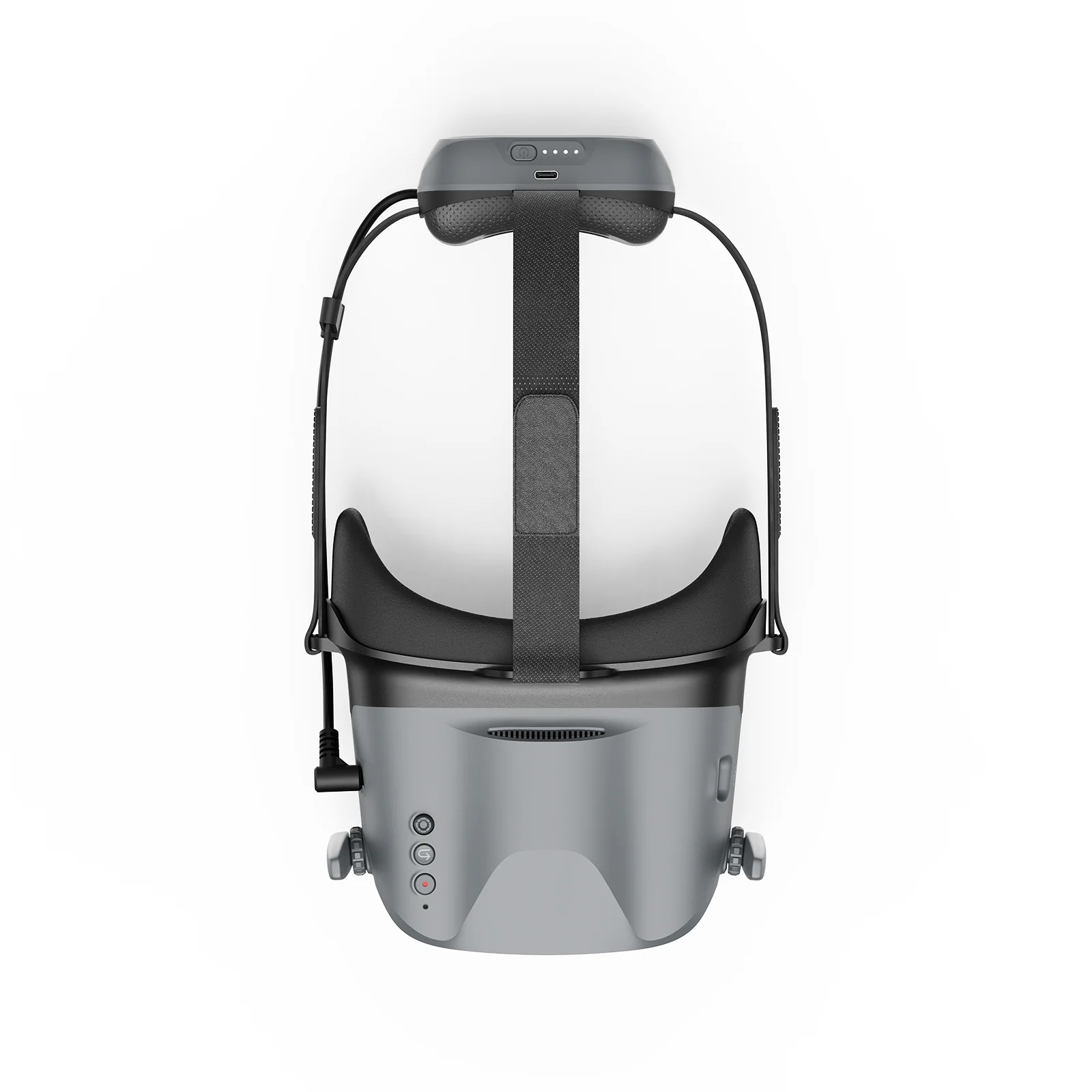

VR04 HD FPV Goggles, VR04 HD & VR04 HD Pro

Bullet Points

Glasses-Friendly Fit: Spacious interior lets you wear your glasses comfortably while flying.
Full Light-Blocking Design: Contoured face padding and a soft nose bridge seal out glare for total immersion.
Live Feed Output (VR04 HD Pro): Stream your flight view to external displays and share the experience with others.
P1 Air Unit Compatibility: Bulid your own whoops with P1 Air Unit or bind and fly with P1-supported models.
Long-lasting Battery: Supports up to 3 hours (VR04 HD) or 4 hours (VR04 HD Pro) of continuous use and can be conveniently powered by any 2–6S whoop batteries.
One-Button Recording: Instantly capture smooth HD footage directly to the goggles with a single press.

Specifications

Size: 168.8x182.1x98.5mm
Weight: 400g±10g (batteries excluded)
Display Screen: LCD
Screen Size: 4.5 inch
Screen Resolution: 1920*1080
Transmission Range: >400m
Bitrate: Max 25Mbps
Batteries: 2600mAh (VR04 HD), 3800mAh (VR04 HD Pro)
Runtime: About 3 hours (VR04 HD) / 4 hours (VR04 HD Pro) in normal mode
Charging Port: Type-C port on the headband battery holder
Card Slot: MicroSD card (Not included), Supports FAT32 system, maximum 1T storage
Recording Resolution: 1080P@60fps

Diagram

VR04 HD:

VR04 HD Pro:

Total Immersion & Comfort

The VR04 HD FPV Goggles are designed for extended-wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. Premium PU face padding ensures a secure, comfortable fit, while a soft silicone nose bridge seals out external light to deliver a fully immersive flight experience.

Aquila20 HD FPV Kit - VR04 HD Goggles

Power Flexibility

The VR04 HD is powered by two 2600mAh batteries for up to 3 hours of use, while the VR04 HD Pro features two 3800mAh batteries for up to 4 hours of use on a single charge. For added flexibility, both models can also be powered directly by any 2‑6S whoop battery—ideal for extended sessions or quick-swap setups.

VR04 HD FPV Goggles power supply

Record & Replay

The VR04 HD goggles deliver stunning clarity with a 1920×1080 screen resolution, bringing your flights to life in vivid detail. It also supports smooth 1080P@60fps recording—simply press the record button to capture HD footage directly to a microSD card with support for up to 1TB of storage. Relive your most thrilling moments anytime, in crisp high definition, with no extra gear required.

VR04 HD FPV Goggles - record your flight

How to Record A Video?

Insert a microSD card (maximum 1T) into the card slot;
Short press the record button to start recording, a red dot appears;
To stop the recording, short press the button again.

VR04 HD Pro: Live Feed Output

The VR04 HD Pro supports real‑time video output via a Type-C to HDMI cable, allowing you to share your live flight view with external displays, capture footage on larger screens, or let spectators experience the action alongside you.

VR04 HD Pro FPV Goggles - live feed output

VR04 vs. VR04 HD vs. VR04 HD Pro

	VR04	VR04 HD	VR04 HD Pro
Screen Size	4.3 inch	4.5 inch
Screen Resolution	800*480	1920*1080
Recording Resolution	480P@30fps	1080P@60fps
Card Slot	microSD Card, (maximum 64G)	microSD Card (maximum 1T)
Antenna	Left single antenna	Dual antenna	Replaceable dual antennas
Type-C Port	Charging	Read a microSD card	Read a microSD card/live feed output via a Type-C to HDMI cable
Power Supply	Built-in 2000mAh 1S batteries	2 * 18650 2600mAh batteries	2 * 18650 3800mAh batteries
Runtime	2H	3H	4H
Fan	-	Cooling fan (automatic)
Weight	425g±10g (built-in battery)	400±10g (batteries excluded)
DC Port	Extended 2‑6S power supply

Wide Compatibility

The VR04 HD goggles are compatible with the P1 Air Unit for custom builds, and are bind-and-fly ready with whoops like the Meteor75 Pro P1—so whether you're building or flying straight out of the box, an immersive HD flight is just a connection away.

VR04 HD FPV Goggles compatibility

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports VR04 HD goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and more—letting you customize your own build or simply bind and fly.

ArtLynk Protocol

File

Recommended Parts

Quadcopter: Meteor75 Pro P1, Aquila20 HD FPV Kit
VTX: P1 Air Unit

Package

1 * VR04 HD FPV Goggles
1 * Adjustable Headband
2 * 18650 2600mAh Battery
1 * User Manual

1 * VR04 HD Pro FPV Goggles
1 * Adjustable Headband
2 * 18650 3800mAh Battery
1 * User Manual

VR04 HD Pro FPV Goggles package

Goggles

VR04 HD FPV Goggles

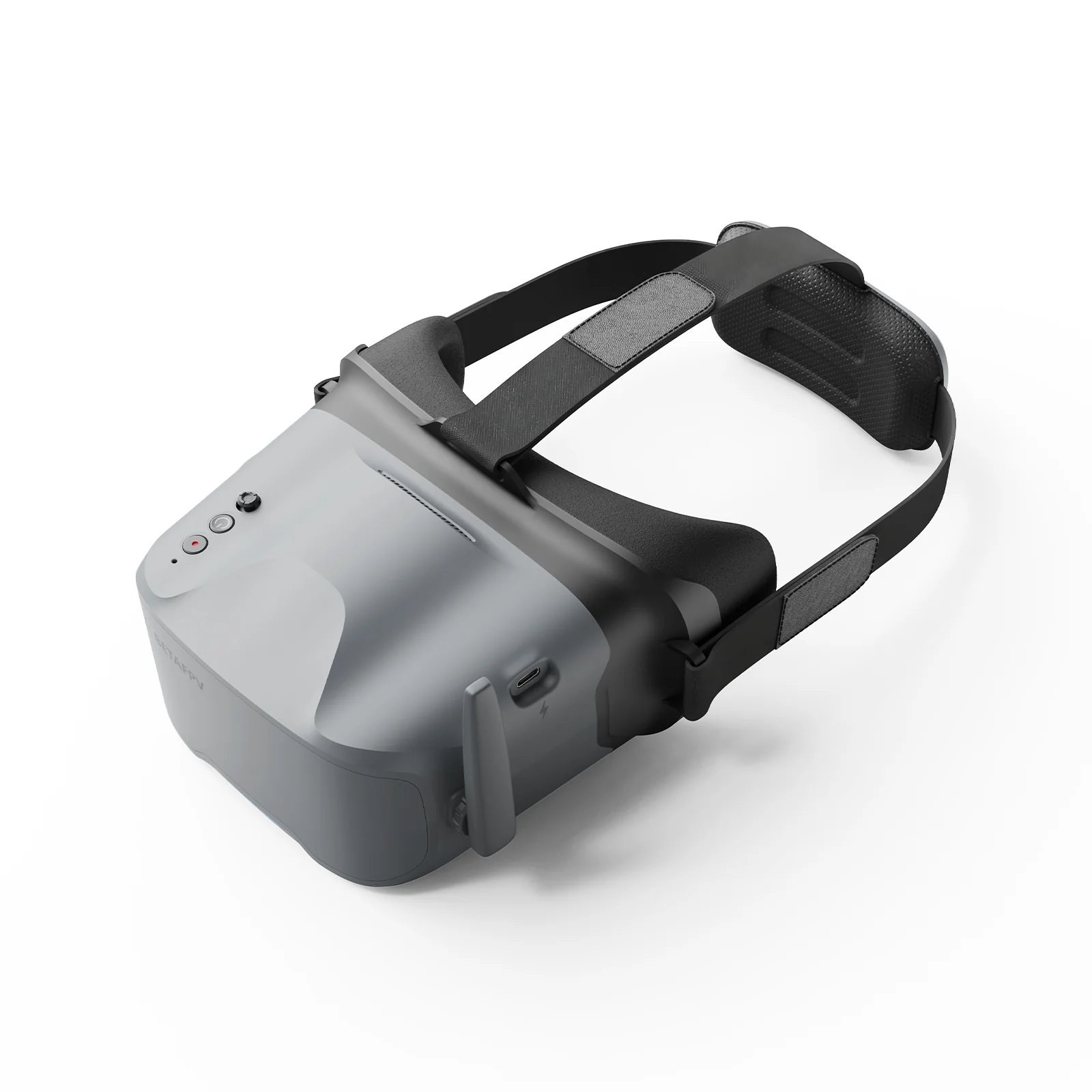

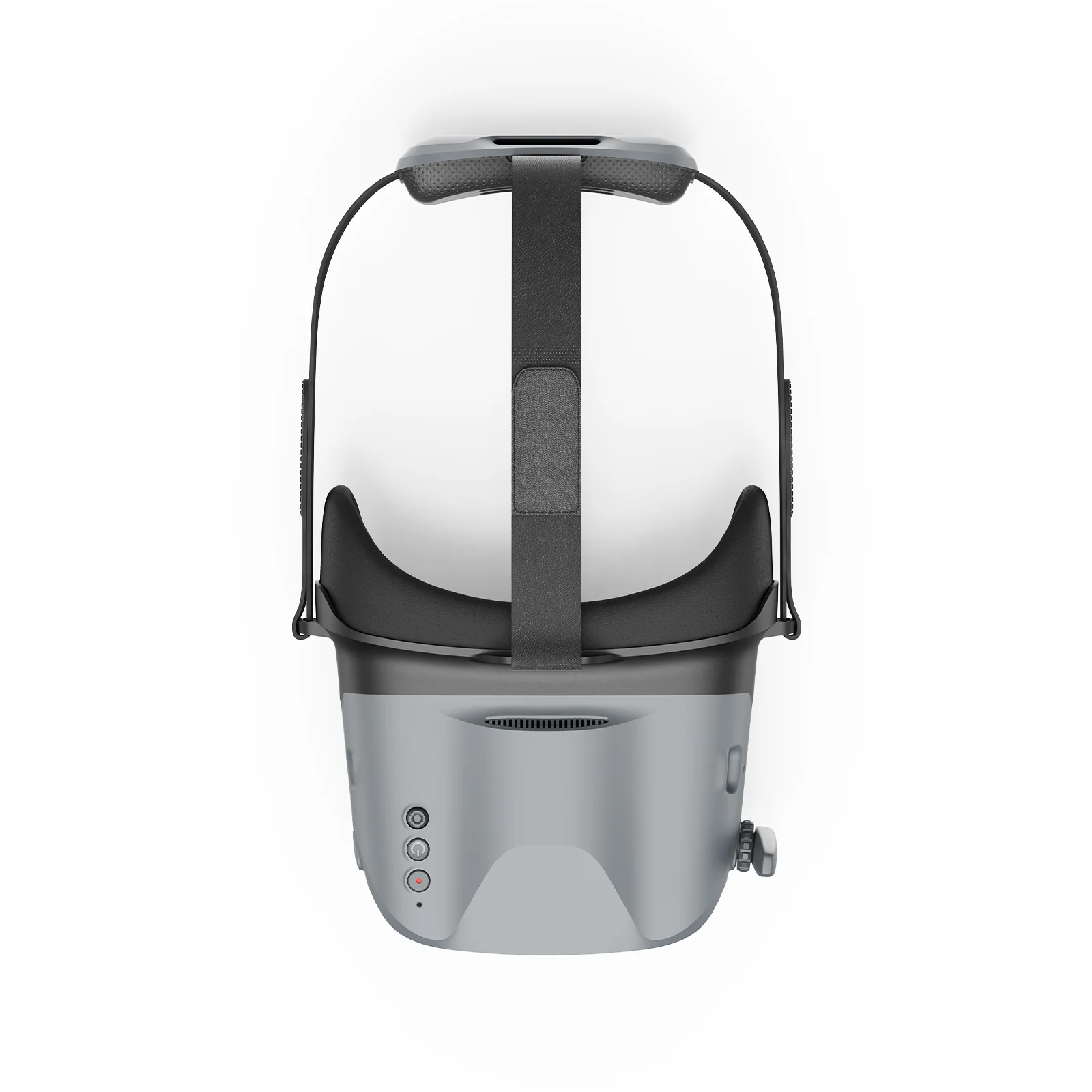

VR04 FPV Goggles
