Aquila20 Brushless Whoop Quadcopter

The Aquila20 Brushless Whoop Quadcopter is available in two versions to match your flying style and budget: P1 Air Unit HD VTX for clear digital FPV, or Analog VTX for reliable, cost‑effective performance. Both share the same crash‑proof frame, BT3.0 smart battery, and powerful 2S propulsion system, delivering impressive 10‑minute flights. With three intuitive flight modes that grow with your skills, it's the perfect choice to start confidently and progress without limits – making FPV mastery easier and more rewarding than ever. See more, fly longer, and crash fearlessly - your FPV journey begins here.

Bullet Points

• P1 Air Unit HD VTX or Analog VTX: Pick the P1 Air Unit for stunning 1080p/60fps digital video or the Analog VTX for reliable, adjustable‑power (25–350mW) transmission up to 200m.
• Powerful & Agile Performance: A smooth and powerful 2S propulsion system gives you confident control for an exciting flight experience.
• Extended 10-Minute Flight: Enjoy more time in the air to practice and explore, thanks to a smart battery that maximizes your fun.
• Learn with Confidence, Fly like a Pro: Master the skies with beginner-safe modes like Stable Hover and Auto-Flip, then advance to full manual control.

• Built to Survive Crashes: A tough, resilient frame takes the worry out of learning, protecting your drone through bumps and falls.

Specifications

	Aquila20 P1	Aquila20 Analog
VTX	P1 Air Unit HD VTX	Aquila20 analog VTX
VTX Power & Range	200mW and range above 400m	350mW and range above 200m
Camera	P1 VTX camera (1/2.9" CMOS)	C04 (1/3" CMOS)
Wheelbase	100mm
Flight Controller	Aquila20 V1.0
Battery	Aquila20 Exclusive Battery 2S HV 1100mAh
Discharge Rate	15C
Discharge Power	8.74Wh
Rated Voltage	7.6V
Battery Weight	54.5±1.0g
Charger	2S HV Battery Charger and Voltage Tester with BT3.0 Connector
Props	Gemfan 2218 3-Blade Propellers
Motor	1103|10500KV motors
Remote Controller Protocol	ExpressLRS 2.4G V3
Camera Tilt	10°-30°
Flight Modes	N/S/M Mode
Flight Time	About 10 mins

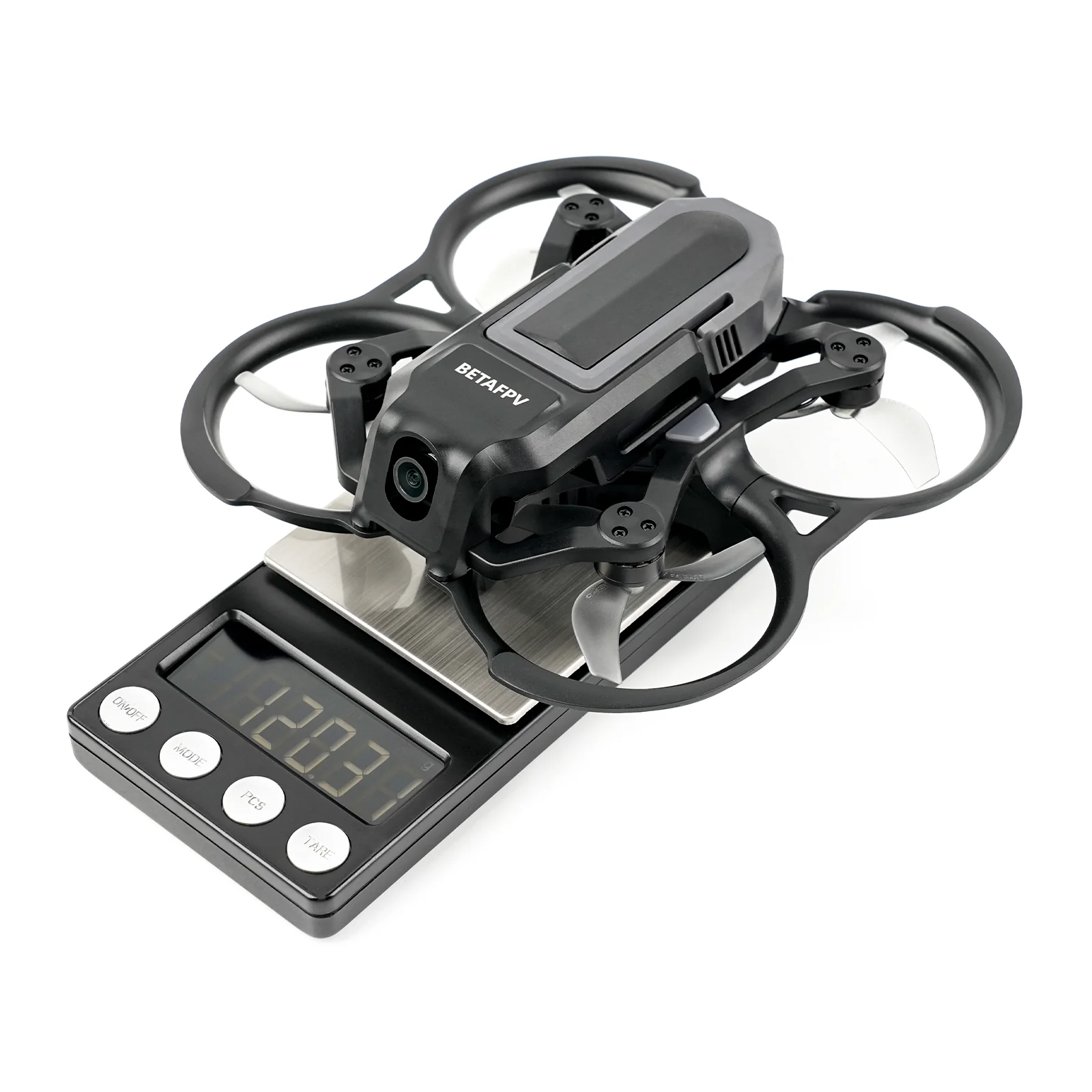

Takeoff Weight	127±1.0g	122±1.0g

P1 Air Unit HD VTX or Analog VTX

The Aquila20 offers two versatile VTX options to match your flying style and budget. Choose the Aquila20 P1 for stunning 1080p@60fps buttery‑smooth digital video with approximately 60ms latency and a 400m transmission range – perfect for immersive, high‑definition flight. Or opt for the Aquila20 Analog for reliable, proven performance with adjustable power output from 25mW to 350mW, giving you the flexibility to optimize signal strength for any environment.

Learn with Confidence, Fly like a Pro

The Aquila20 is designed to grow with you. Powered by the self-developed flight controller, it features three distinct flight modes (N/S/M) that allow you to start with absolute stability and gradually unlock full acrobatic freedom as your skills develop.

Altitude Hold & Stable Hover (N Mode): Your confidence-building mode. A highly precise barometer allows the drone to lock its altitude and hover steadily in place automatically. It's the perfect safety net for taking your hands off the remote control, learning orientation, and ensuring a safe landing in emergencies.

Pro Modes (S & M Modes): For when you're ready to advance. S and M Modes disable all assists, giving experienced pilots complete, unfiltered control for flips, rolls, and precision maneuvering.

Turtle Mode: With this mode, if you flip over, a simple command on your remote control instructs the motors to flip the drone back onto its feet, so you can take off again instantly—no walking over to manually retrieve it.

Aquila20: Start Safe, Fly Longer

10-Minute Flight & Powerful 2S Propulsion

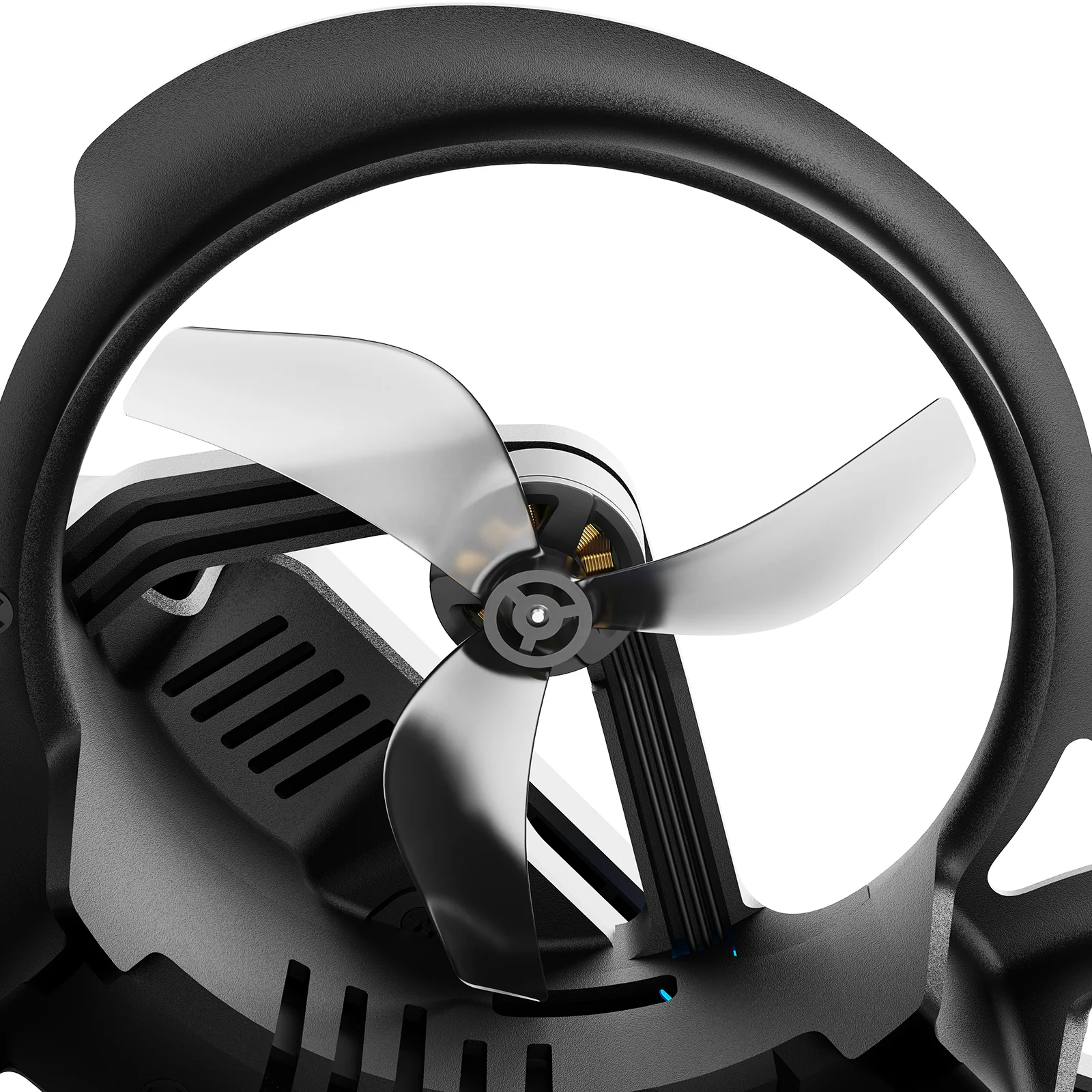

Experience the perfect balance of endurance and performance. Our refined 2S propulsion system delivers both agile power and extended 10-minute flights, giving you more time to master every maneuver. The innovative inverted duct design enhances thrust and provides exceptional flight stability, while maintaining perfectly manageable control for beginners. Fly longer with confidence - this combination of power and efficiency makes learning smoother and more rewarding than ever.

Built to Survive Crashes

Engineered for resilience, the Aquila20 features a PA410 frame specifically designed to absorb and dissipate impact energy, drastically reducing the risk of damage from crashes. The integrated design provides superior protection for the camera and vital internal components, ensuring your whoop stays in the air. This isn’t just a drone—it’s built to survive, so you can learn, experiment, and fly with confidence.

Smart Power, Smarter Flights

Powered by the advanced Smart Battery, the Aquila20 delivers optimized performance with built-in intelligence. Its integrated management chip ensures efficient power delivery and automatic protection, while clear LED indicators and low-power alerts keep you informed throughout your flight. Fly longer and land safer with total control!

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

• BETAFPV VR04 HD goggles, Aquila20 P1, Meteor75 Pro P1
• HGLRC Draco
• More coming soon!

Firmware Compatibility Notes:

1. To ensure seamless compatibility with third-party ArtLynk protocol equipments (such as HGLRC Draco), please verify that your BETAFPV devices are updated to firmware version V2.0.5 or later.
2. The air unit needs to be updated via the ground station. First make sure the ground station and air unit are on the same firmware version, then proceed to update the air unit. And firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44).

Ground Station	Air Unit	Actions Required
V1	V1	Update both to V2
V1	V2	Update ground station to V2
V2	V1	Downgrade ground station to V1, then update both to V2
V2	V2	Ready to use

Recommended Parts

• Goggles: VR04 HD, VR04
• VTX: P1 Air Unit
• Radio Transmitter: LiteRadio 4
• Frame: Aquila20 Brushless Whoop Frame
• Motors: 1103 Brushless Motors
• Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Battery: Aquila20 Exclusive Battery (2PCS)
• Charger: 2S HV Battery Charger and Voltage Tester with BT3.0 Connector

File

• Firmware for Aquila20 Brushless Whoop Quadcopter

Package

• 1 * Aquila20 Brushless Whoop Quadcopter (Analog/P1 Air Unit Version)
• 1 * Aquila20 Exclusive Battery 2S HV 1100mAh
• 1 * 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
• 4 * Gemfan 2218 3-Blade Propellers

• 1 * Prop Removal Tool
• 1 * Cross Screwdriver
• 1 * 4Pin Adapter Cable
• 1 * USB Type-C Adapter Board
