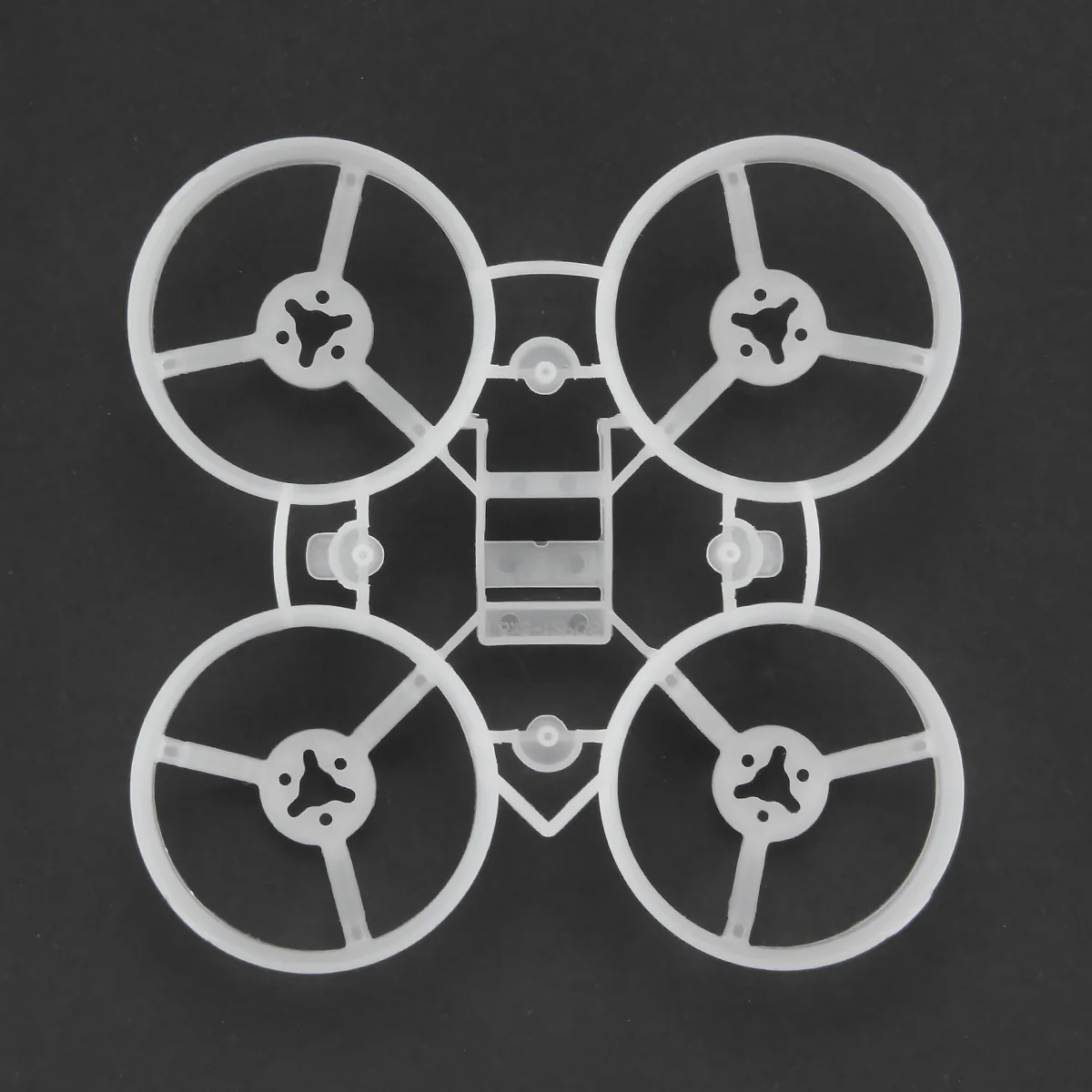

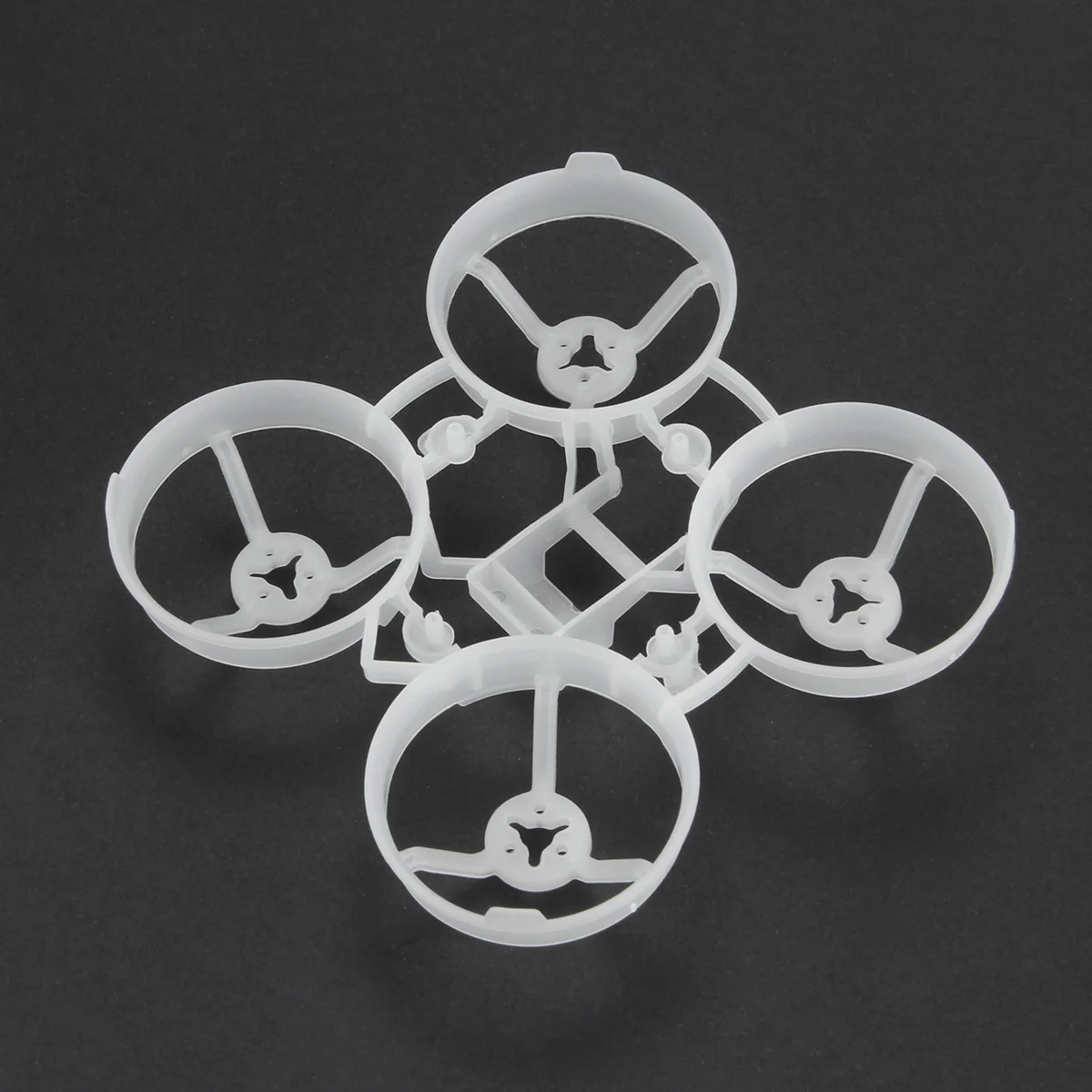

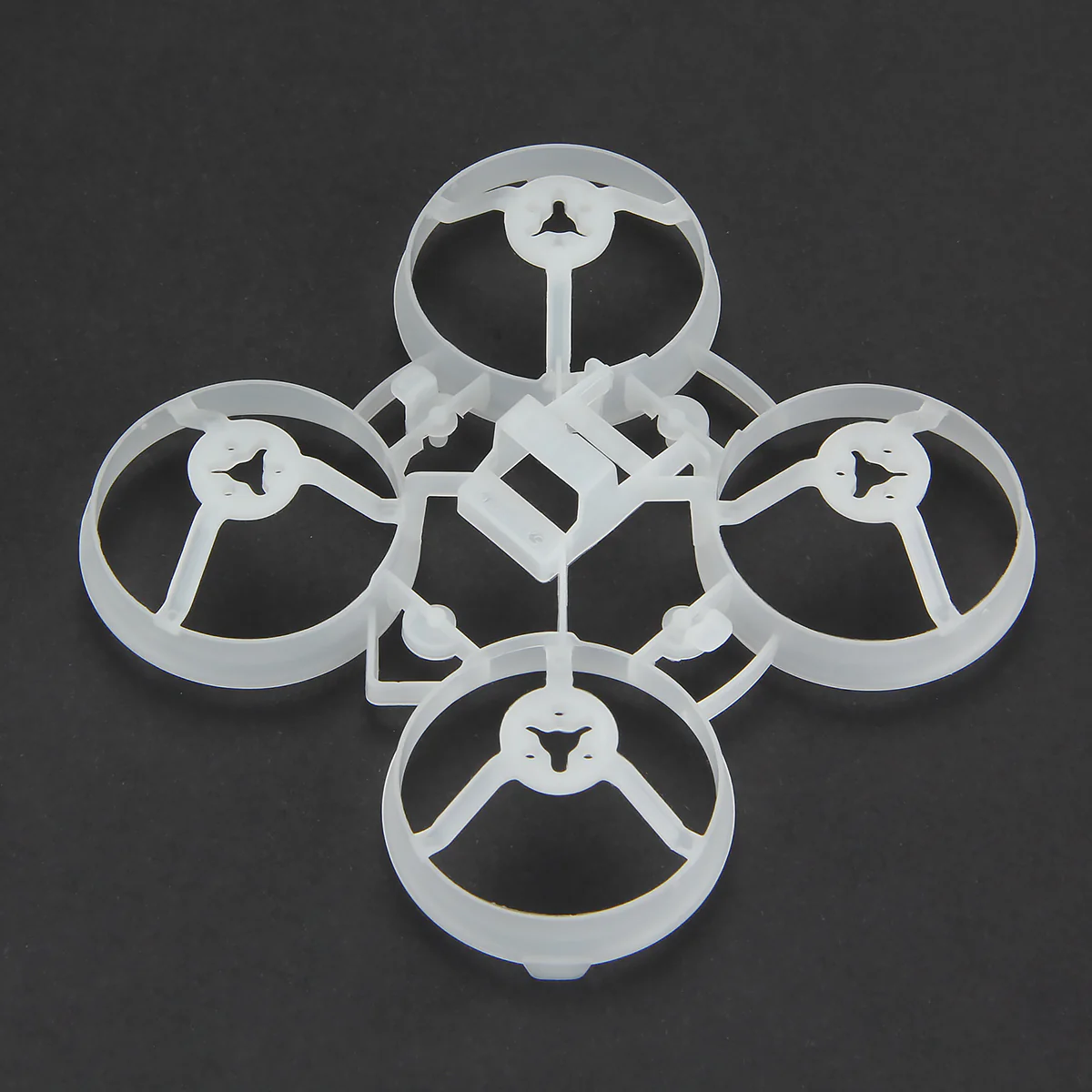

Beta65 Pro Micro Brushless Whoop Frame

The upgraded version Beta65Pro Frame has finally come.
From the piture below, you can see the difference of the Beta65pro frame of different versions.

Here are the IMPROVEMENTS we've made.

Recommend Parts

• Frame: Beta65 Pro brushless frame (just this one)
• Motor: 0603 brushless motors
• Props: 31mm props (1.0mm shaft version)

Really not recommend the 0703 motors with a 65mm frame ( like Beta65 Pro frame or BWhoop B06 etc). Why? The combo of 0703 motors and 31mm props (for 65mm frame) has a really low efficiency. Really not power enough. For the 65mm 1S brushless drone, recommend the 0603 motors (comming soon).

Here is the testing result of different motors and frames combo.

•  Throttle value means the position when the drone hovers in the air.
• Flying time is the time from OSD voltage value 4.3V->2.8V.
• All tested with 4-blades props. 31mm props or 40mm props.
• All throttle values are tested on full charged 550mAh batteries.
• The KV value of 0703/0603 motors are both 15000KV.



Package

      Plastic durable package can protect the package from deformation during
      the shipping process.

• 1 * 65mm micro brushless whoop frame
