VR01 FPV Goggles

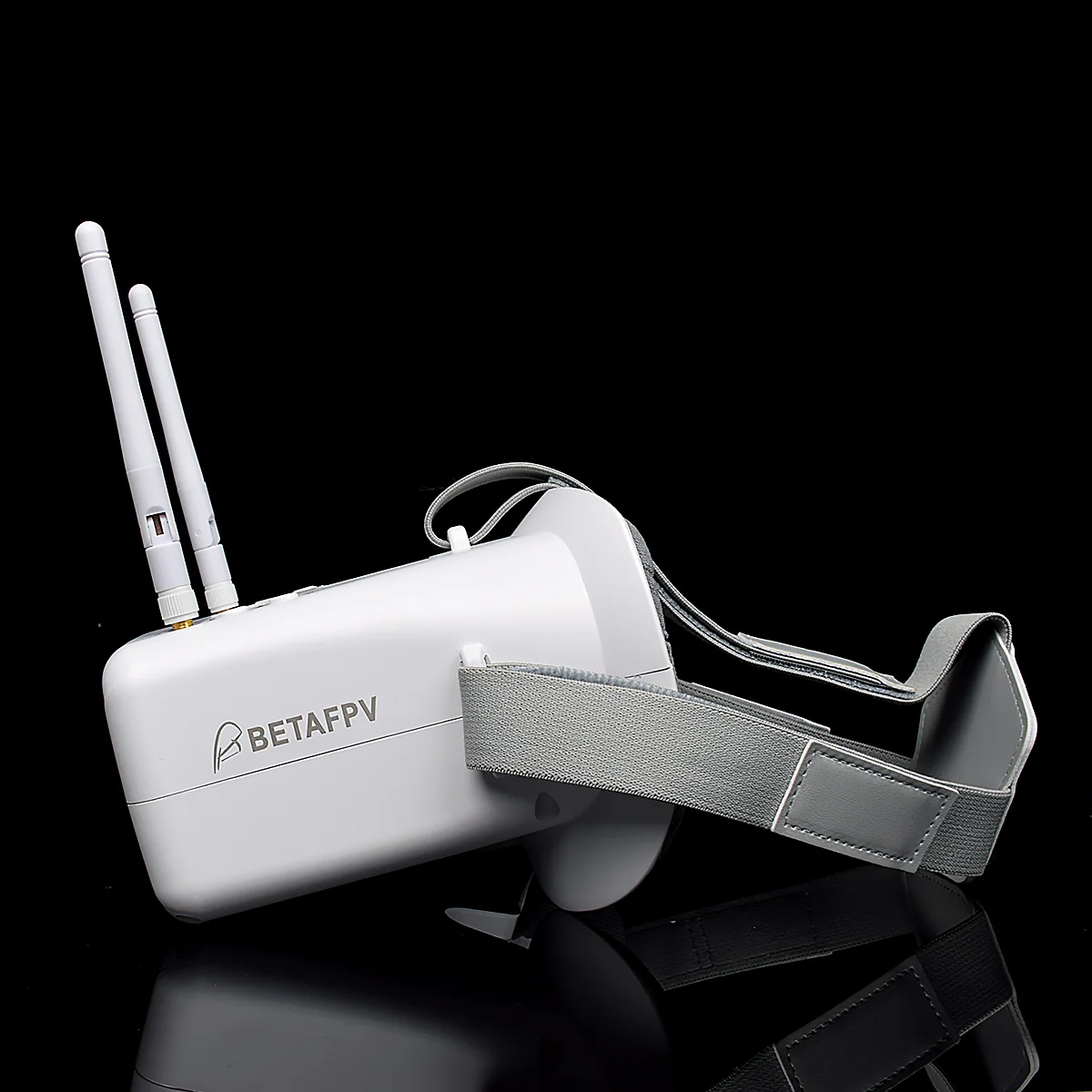

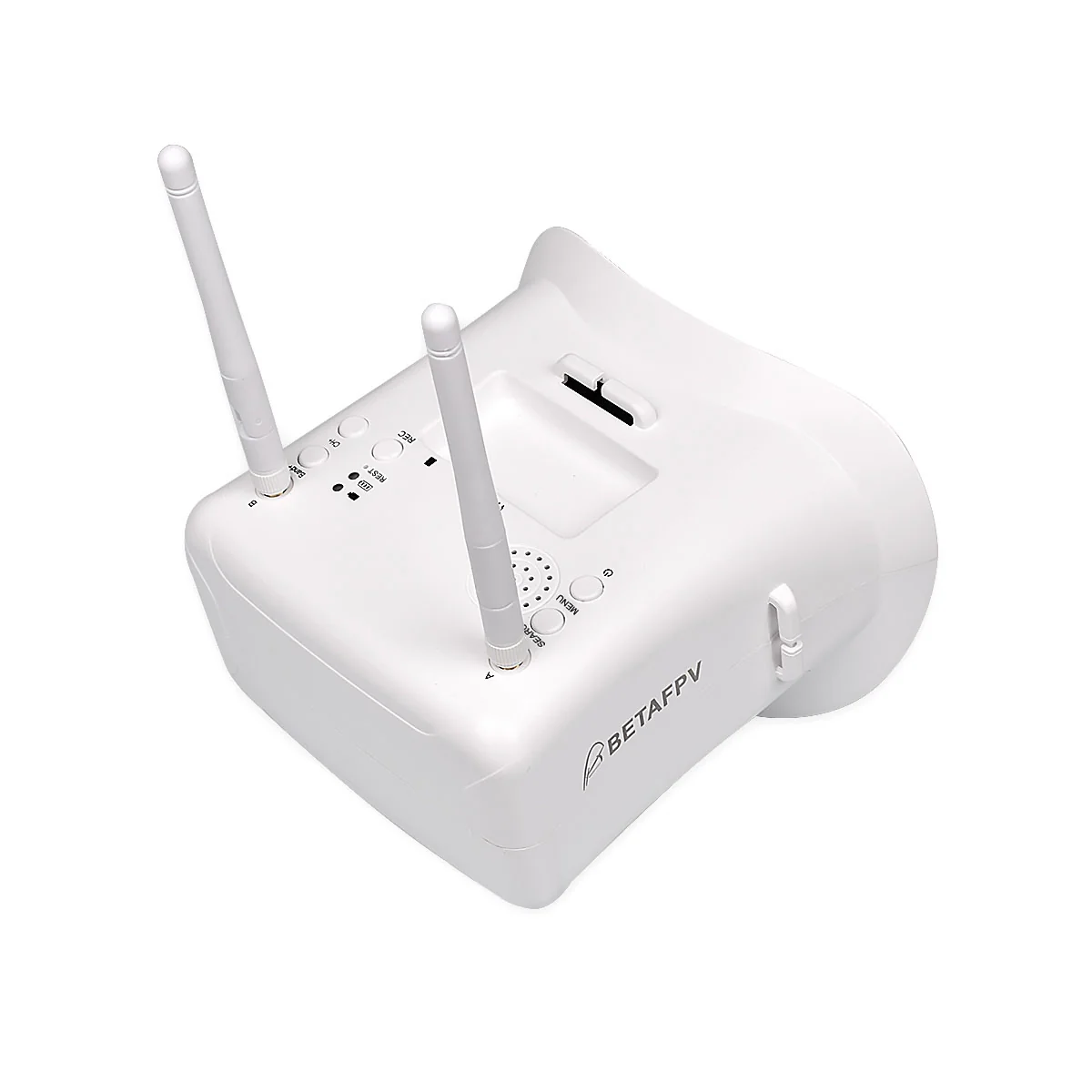

BETAFPV VR01 FPV Goggles - a First-Person-View Goggle with 4.3 inches 800*480px high brightness LCD which will allow you to experience a bright world without warped and blurred images. Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, comfortable like cotton and suitable for all age ranges.
Bullet Point
- BETAFPV VR01 FPV Goggles is with 4.3 inches 800*480px high brightness LCD, which is specially tuned for FPV racing or Model airplanes.

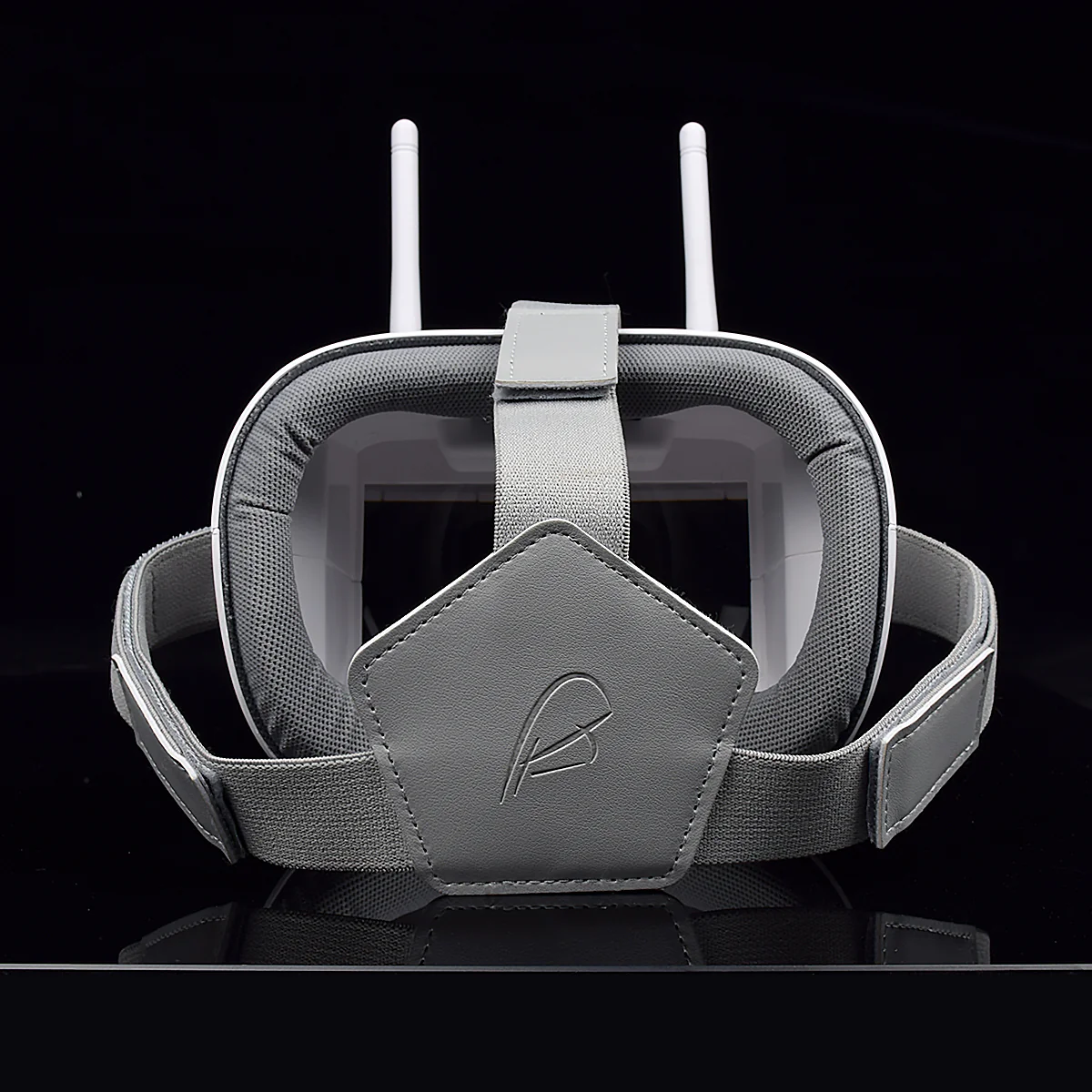

- Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand.
- Come with an advanced auto-searching function and show you the working frequency on screen.
- 92% transparent lens adopted, no distort, no blur on the adage of the screen.
- Lightweight only 375g, it also comes with a 2hr 2000mAh battery, bringing great endurance. RTF for any scale, racing, Model airplane game.
Specification
BODY- Dimension: 155x144x113mm
- Weight: 375g with 2hr 2000mAh battery
- Belt: three-Ways adjustable belt
- screen size: 4.3 inch
- Screen resolution: 800*480 (No blur after enlarge by the lens)
- Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
- View Angle: 12 O’CLOCK
- 2.8x boost of the video to acquire intense feel-in-there video
- 92% transparent rate no distort of light
- Input CVBS
- Headphone sound output
- TF Card(C10) Max32G
- USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment
- Built-in 3.7V/2000mAh high-capacity polymer battery, LED stays red while charging. When charging is completed, the LED will turn to bright green.
- Each full charge revive is around 2 hours working time
Band and Channel Selection
|
CH
|
CH 1
(MHZ)
|
CH 2
(MHZ)
|
CH 3
(MHZ)
|
CH 4
(MHZ)
|
CH 5
(MHZ)
|
CH 6
(MHZ)
|
CH 7
(MHZ)
|
CH 8
(MHZ)
|
|
GROUP
|
||||||||
|
A
|
5865
|
5845
|
5825
|
5805
|
5785
|
5765
|
5745
|
5725
|
|
B
|
5733
|
5752
|
5771
|
5790
|
5809
|
5828
|
5847
|
5866
|
|
D
|
5705
|
5685
|
5665
|
5645
|
5885
|
5905
|
5925
|
5945
|
|
E
|
5740
|
5760
|
5780
|
5800
|
5820
|
5840
|
5860
|
5880
|
|
R
|
5658
|
5695
|
5732
|
5769
|
5806
|
5843
|
5880
|
5917
|
Operation Instructions
KEY

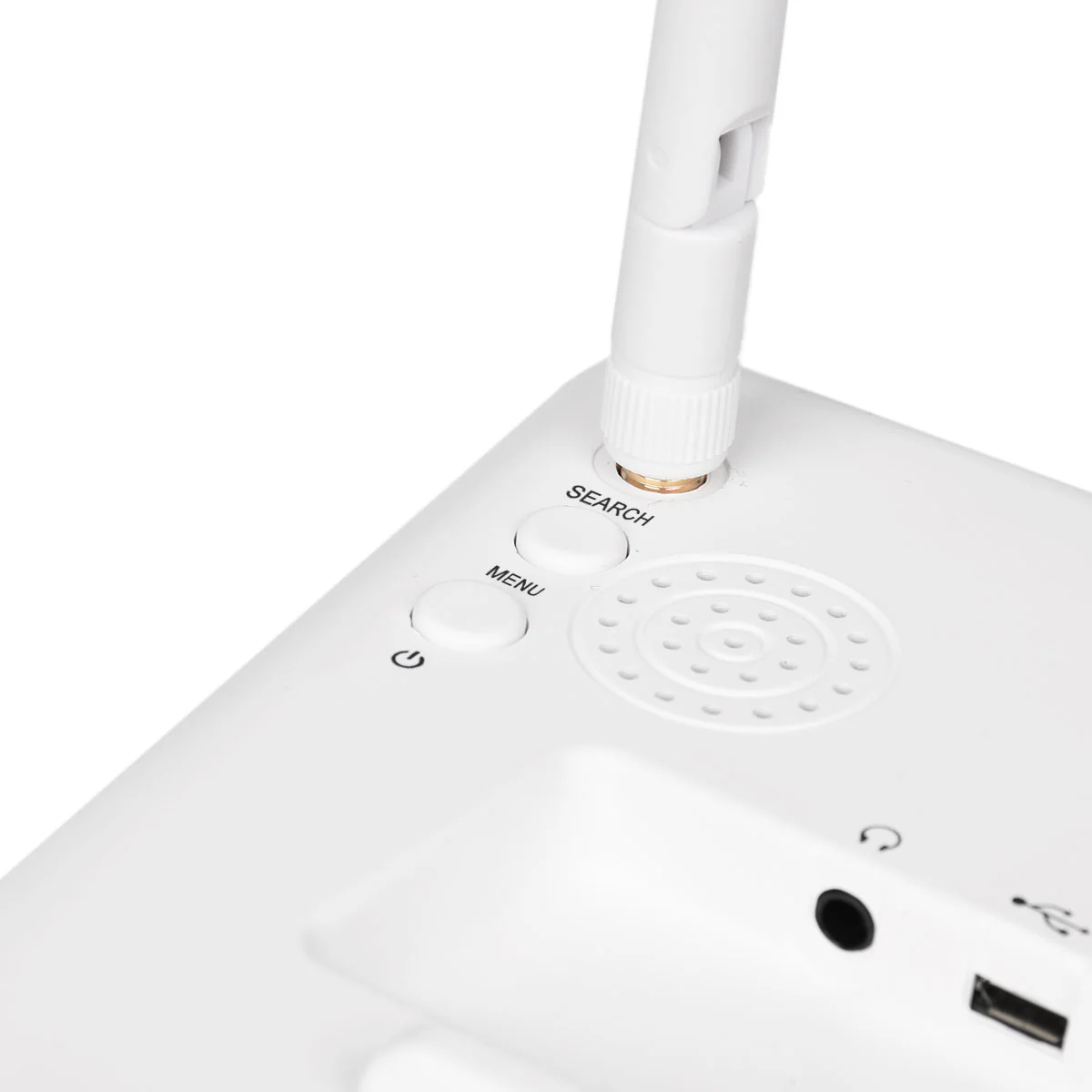

- K1>SearCH/AV
Default mode, Short press for automatically search signals to certain signal strength and stops on that channel; Long press switch RF MOD and Long press for AV MOD; In Play mode, pressed jump volume to adjust OSD.
- K2>MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is used as the Return.

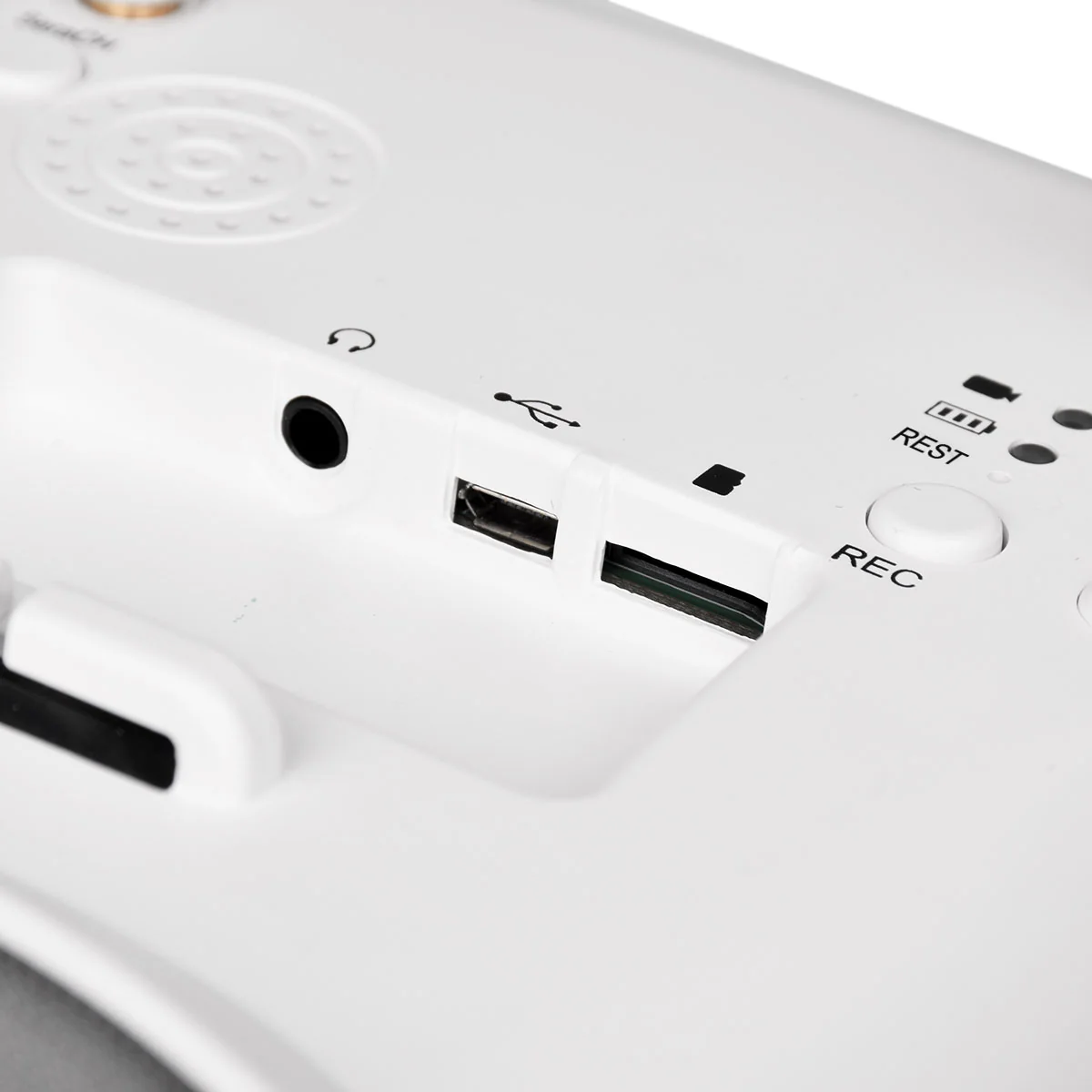

- K3>REC/Play/OK
Default mode, Short press for recording /STOP; Long press for Play mode; MENU pressed, this button is used as the confirmed.<

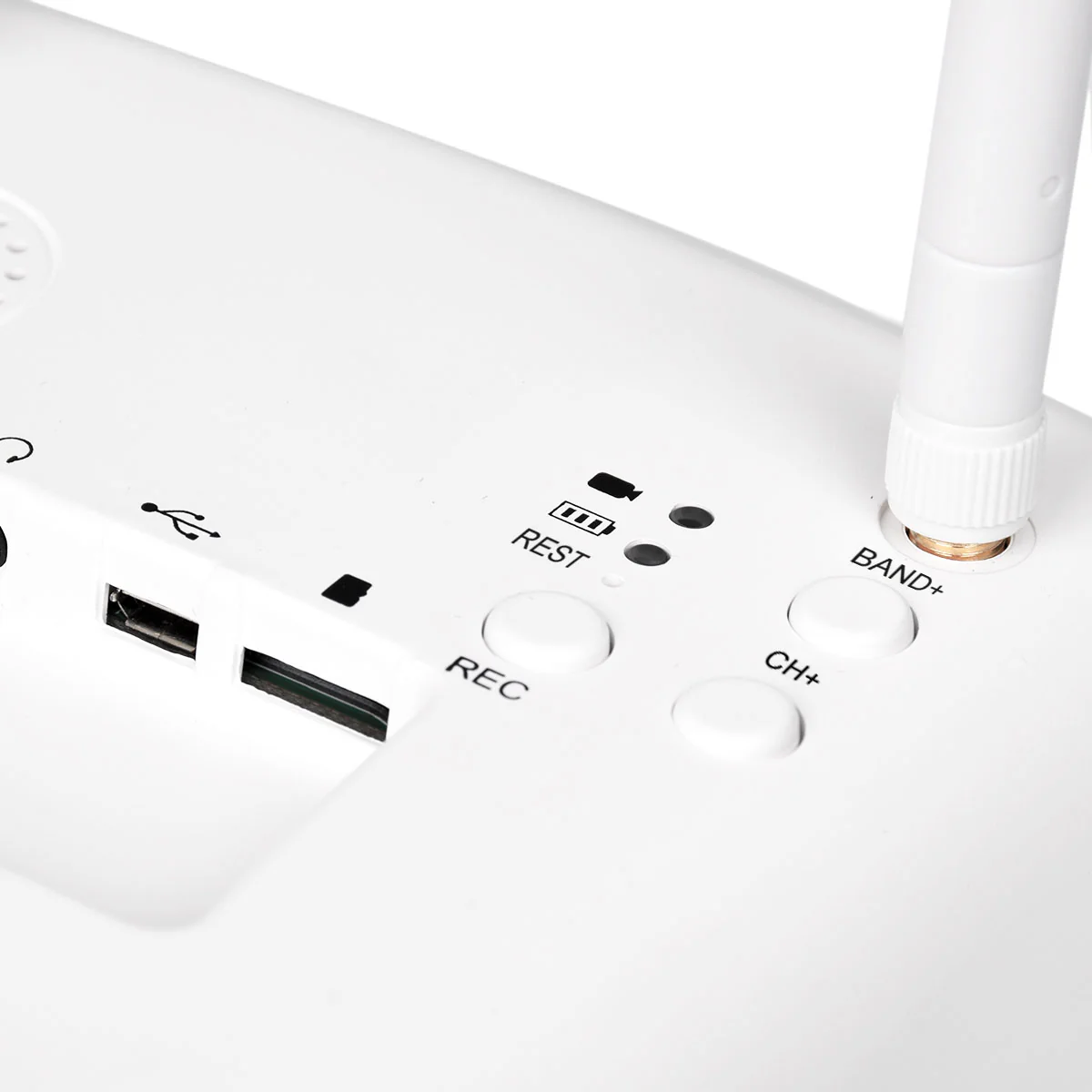

- K4>Band+/VOL+
Default mode, Short press for Band+ option A, B, D, E, F, R cycle selection; Long press for Volume control -; MENU pressed, this button is used as the UP.
- K5>CH+/VOL-
Default mode, Short press for CH 1~8 cycles; Long press for Volume control +, MENU pressed, this button is used as the DOWN.
PLAYBACK
- Call MENU and select Playback (Short Press K1 button to call menu, and use K3 button to select Playback mode; Or long pressed K3 )
- Review/Replay in Playback mode (Playing Short K1 jump volume adjust OSD)
- Buttons have a different function in playback mode
- Record file: AVI, 800*480px progressive
- Support up to 32G TF card (C10 recommend)
- K2: Playback menu (volume control/file delete/protect)
- K4: UP/ fast backward<<
- K5: DOWM/ fast backward>>
- K3: Select/Play/ Pause
- K1: Quit Playback mode
NOTE: If the device is not used for a long time, please charge once every four months, in order to protect the battery.
Package
- 1 * BETAFPV VR01 FPV Goggles
- 1 * USB Charging Cable
- 2 * Dipole 5.8G Antennas
- 1 * Adjustable Headband
