BT2.0 Connector - the most significant revolution in 1S Whoop Drone.

Not sure if it's worth to switch BT2.0? Check more from Joshua Bardwell'video- Proof that BT2.0 connector is better than PH 2.0

To provide our customers with greatest convenience, we specially made this adapter cable, this adapter cable will be a perfect solution when you want to charge the BT2.0 300 mAh 1S battery with the PH 2.0 charger.

BT2.0 has been released on the market for 3 whole years now since 2019 and we would like to express our sincere appreciation for your patronage. The most shocking price readjustment with price cut down 40% for BT2.0 CABLES&CONNECTOR - NOW AT 4.99$-5.99$. We are now holding a price cut up to 40% together with the first 30 buyers getting free sets of BT2.0.(Code: FIRST30FREE)

BULLET POINTS

• BT2.0 connector decreased internal resistance of connector effectively by upgrading the crimped pins to 1.0mm banana connector and increasing the cross-sectional area of 1.0mm banana connector.
• BT2.0 connector supports 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current. Brings more perfect flight experience when you fly the 1S brushless whoop drone.
• By using the BT2.0 connector, it can solve the problem of voltage sag, the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flight time without disturbance of low voltage warning.
• Compared with the PH2.0 crimped pins, BT2.0 1.0mm banana connector is more durable which can discharge more currents in the same capacity and provide far more power. You can get 2mins flight time in full throttle if you use our BT2.0 300mah 1S battery on Meteor65.
• Conversion from PH2.0 connector to BT2.0 connector can be achieved with just one Adapter Cable, which convenient for charge the BT 2.0 battery with the PH 2.0 charger.

Here is Betafpv Lab video to show you the best way of replacing BT2.0 connectors.

SPECIFICATIONS

• Item: BT2.0-PH2.0 Adapter Cable
• Length: 55mm (Not included the plug)

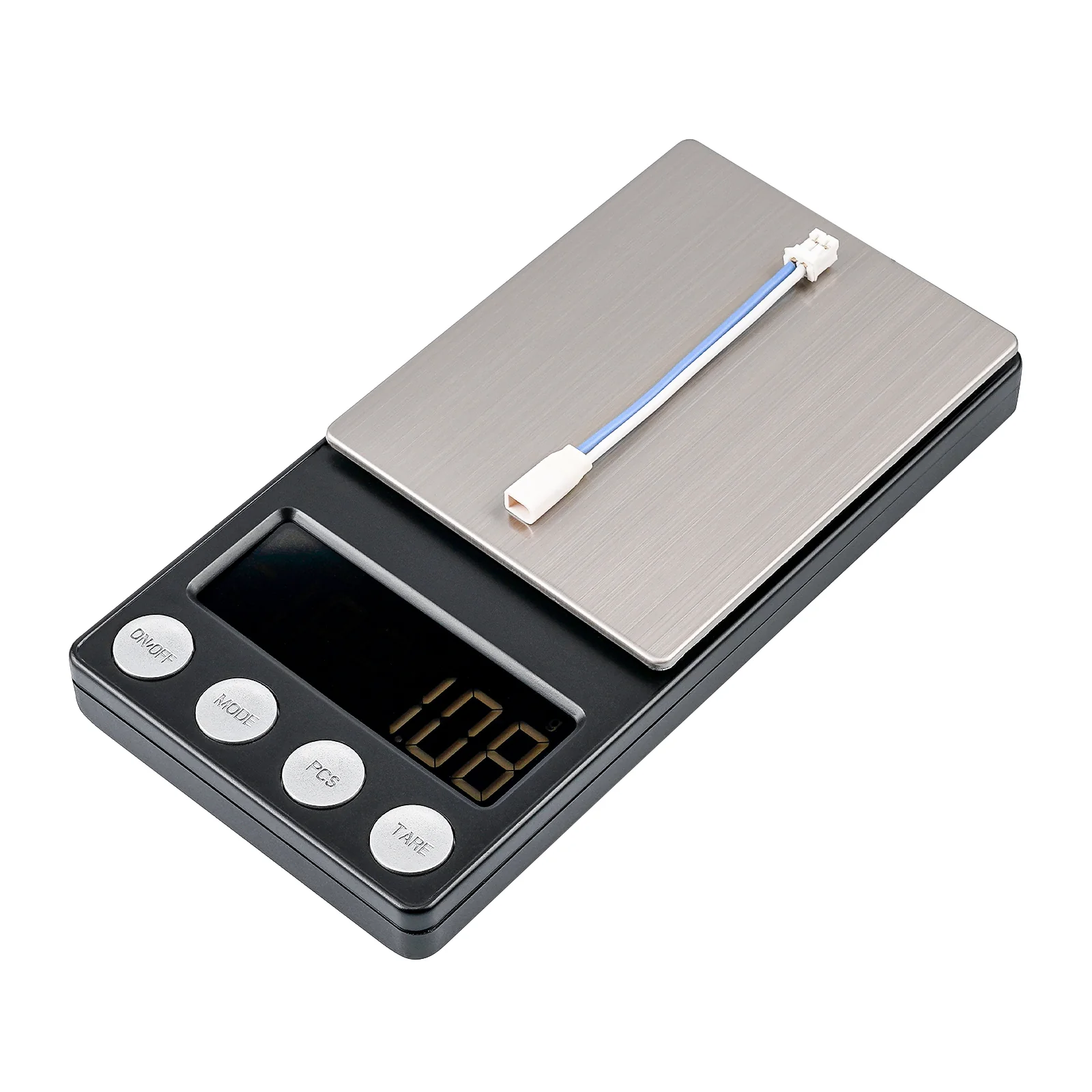

• Weight: 1.07g(1 pcs)
• Wire Type: 22AWG
• Input Port: PH2.0 male connector（connect PH2.0 charger）
• Output Port: BT2.0 female connector（connect BT2.0 battery）
• Note: Blue represents the positive pole (+); White represents the negative pole(-)

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction, click here to reach.

There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.

BT2.0 Series Accessories

We know some pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 Power whoop connectors for those people who wanna convert the PH2.0 connector to BT2.0 connector.

• BT2.0 Connectors (10pcs)
• BT2.0 1S Whoop Cable Pigtail
• BT2.0-PH2.0 Adapter Cable

Highly recommend the below products with BT2.0 connectors or cables. BETAFPV will collaborate closely with more brand manufacturers in the future, in order to bring better service and experience to customers.

• BT2.0 450mAh 1S Battery
• BT2.0 300mAh 1S Battery
• BT2.0 Battery Charger and Voltage Tester
• BT2.0 Series Quadcopters
• 6 Ports 1S Battery Charger & Adapter
• Other Brand Chargers & Batteries with BT2.0 port

PACKAGE

• 6 * BT2.0-PH2.0 Adapter Cable
