C02 FPV Micro Camera

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

C02 FPV Micro Camera

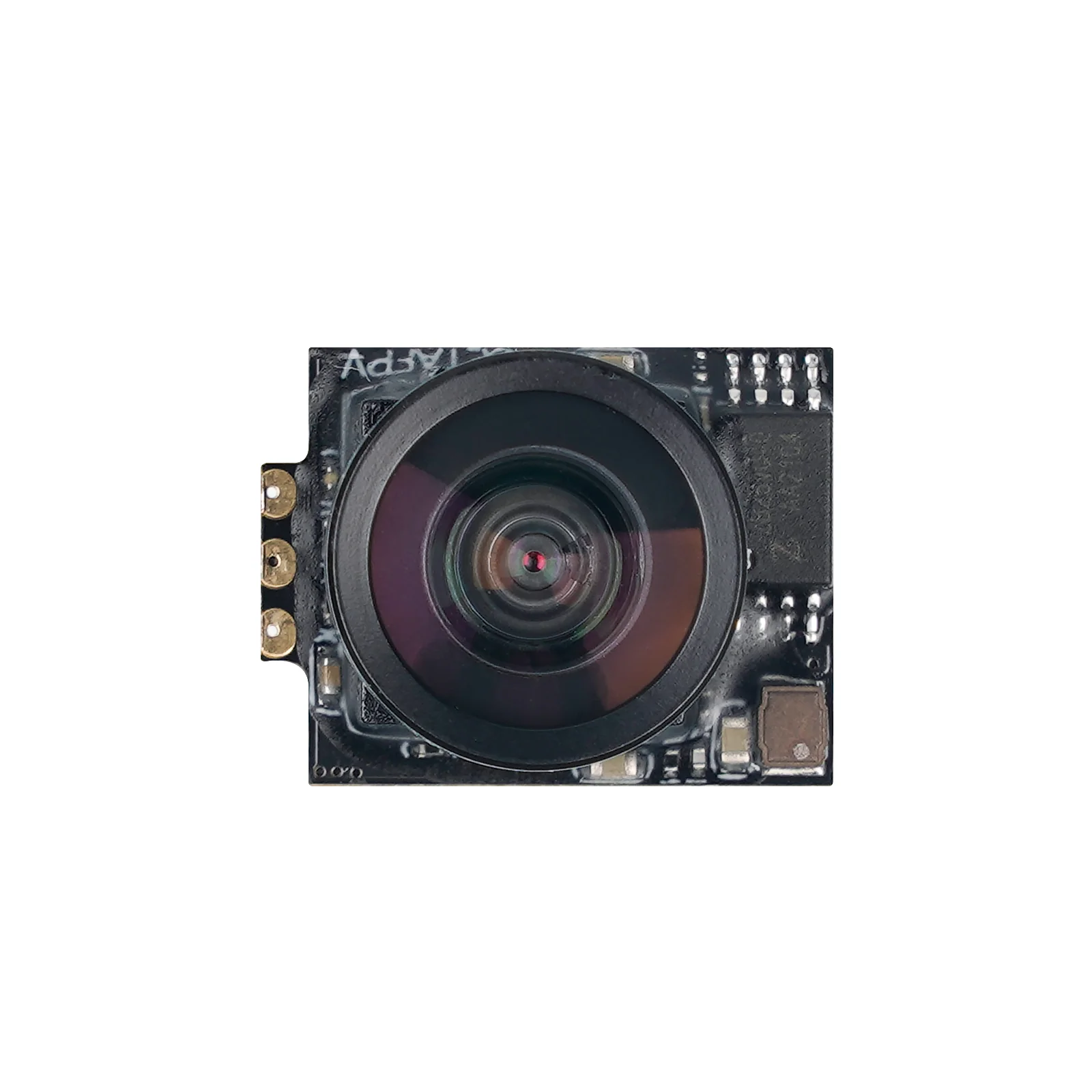

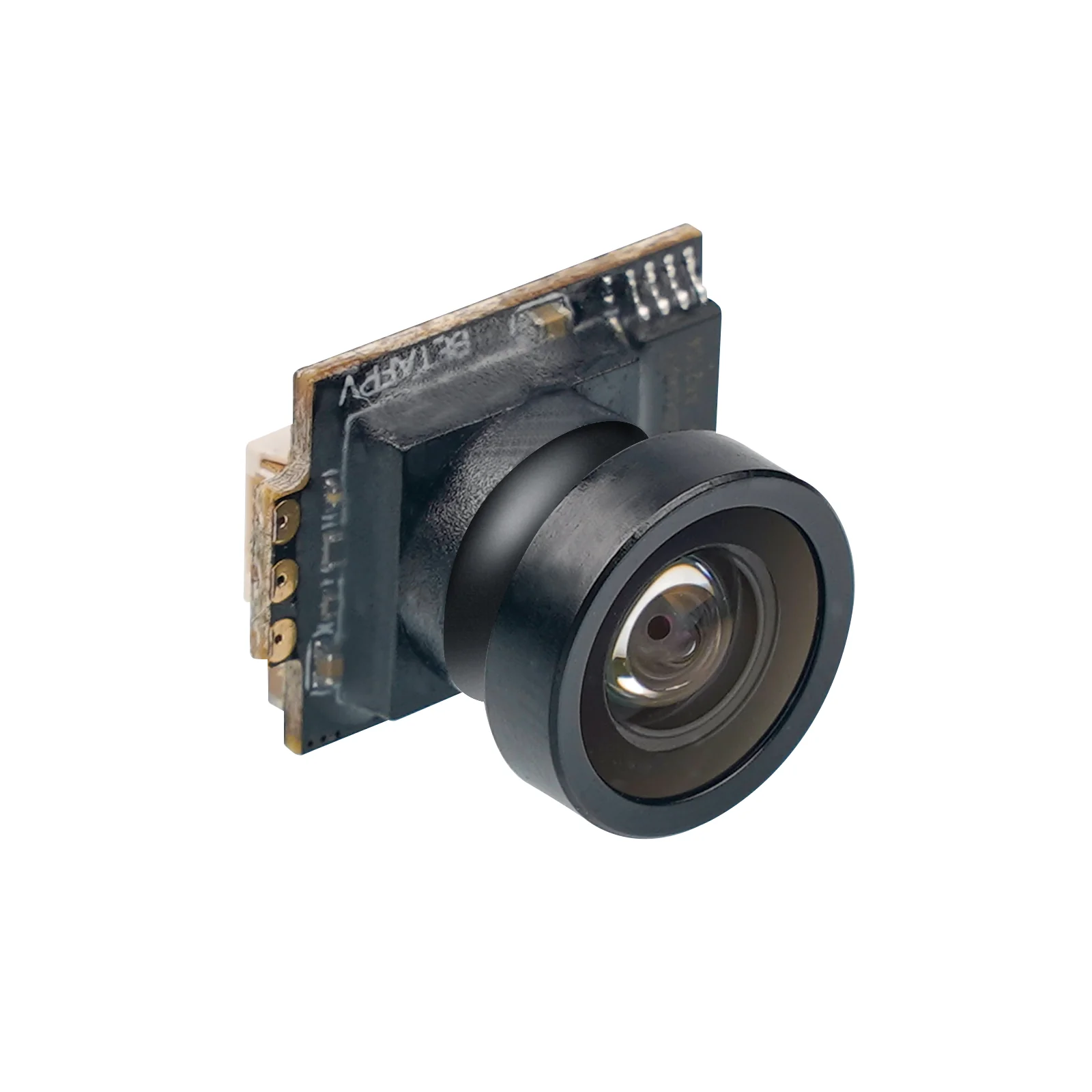

C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for  1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play Connector

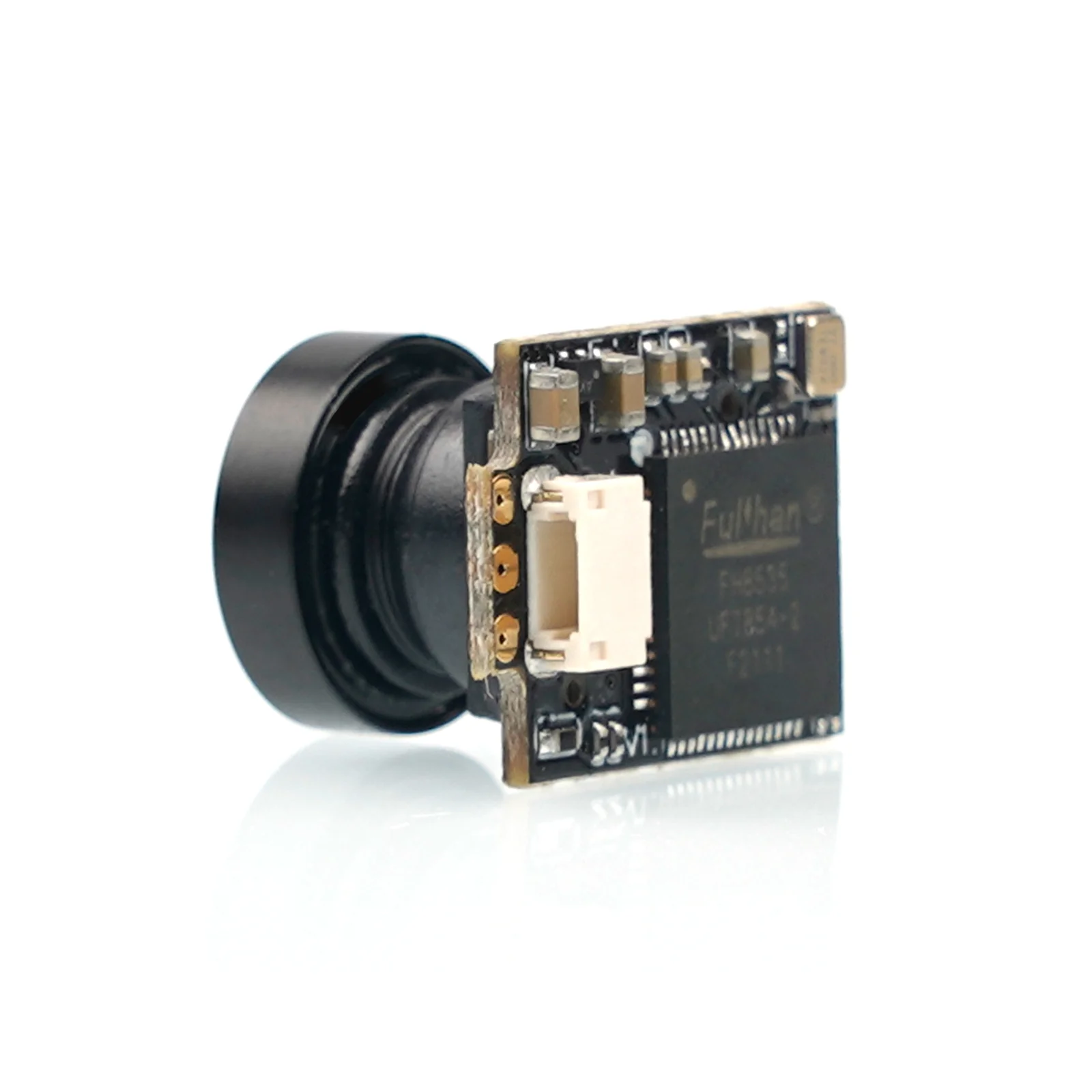

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Bullet Points

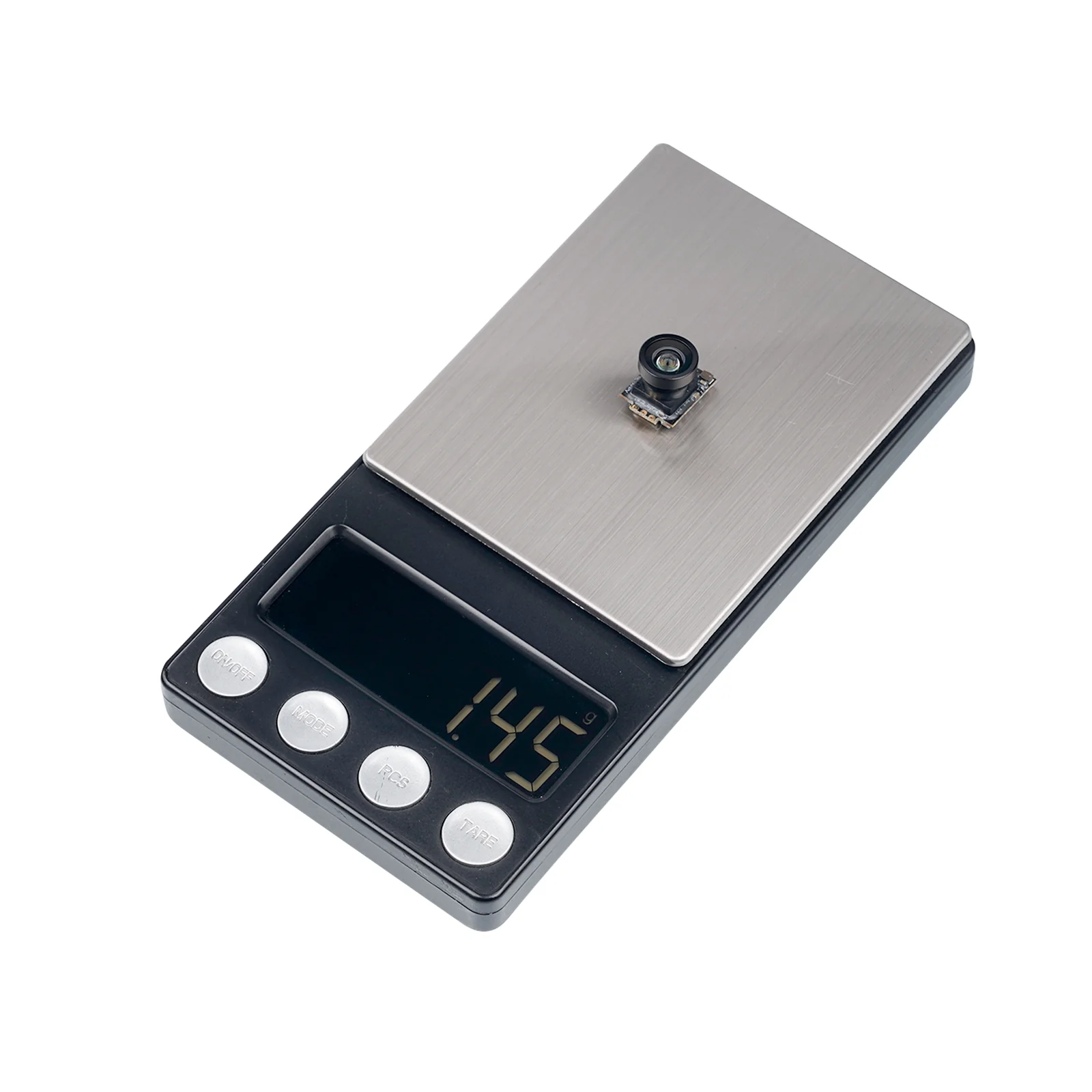

  • Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
  • 1200TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image
  • Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
  • 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

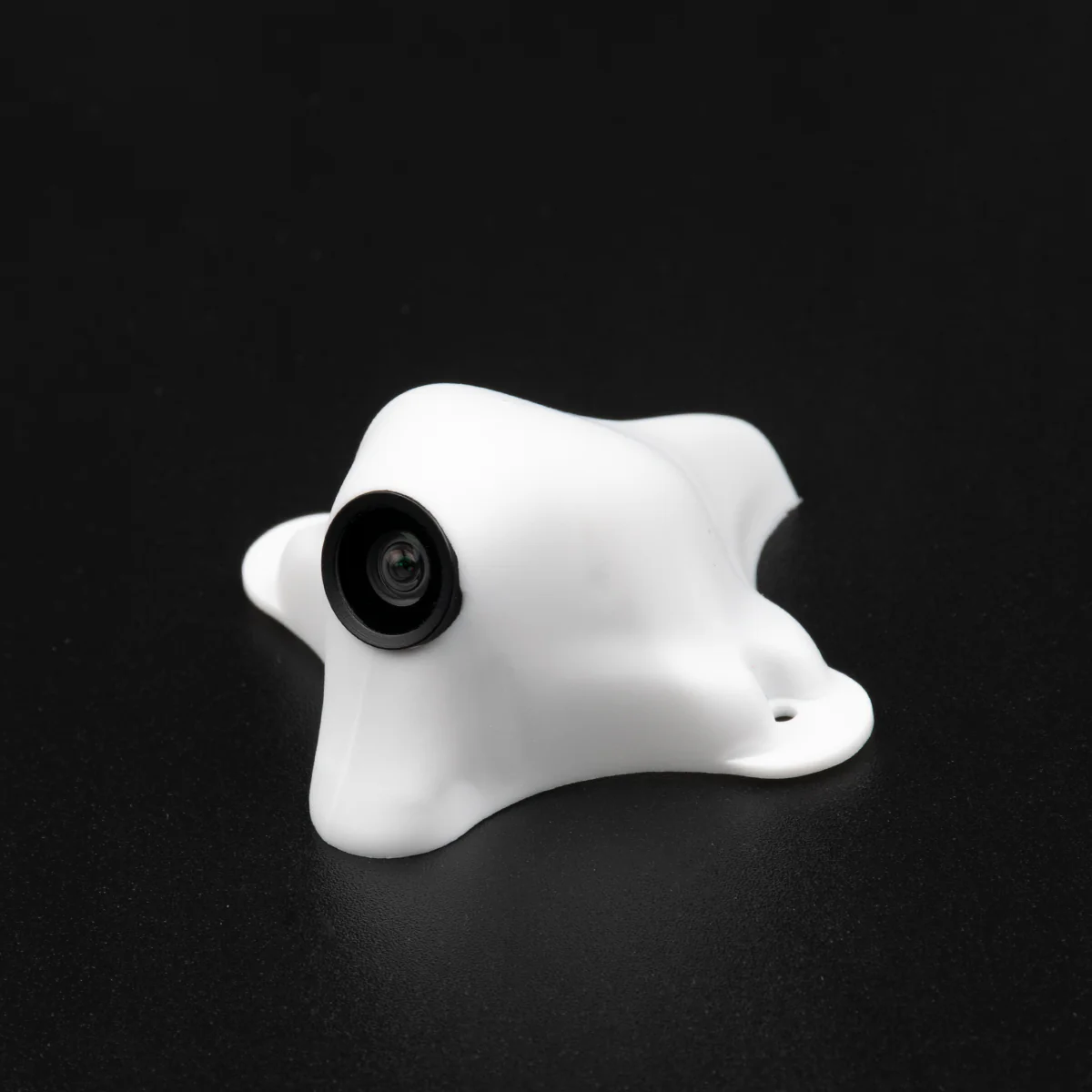

  • The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

      Specification

      • Item: C02 Camera
      • Image Sensor: 1/4" CMOS Sensor
      • Horizontal: 1200TVL with Global WDR
      • Signal System: NTSC
      • Lens : 2.1mm(M8) FOV 160°
      • S/N Ratio: >50db
      • Electronic Shutter Speed: Auto
      • Auto Gain Control (AGC): Auto
      • Min. Illumination: [email protected]
      • D-WDR: Auto
      • Day/Night: Color
      • Power: DC 3-5.5V
      • Current: 110mA@5V / [email protected]
      • Housing Material: ABS
      • Dimension: 13*11mm
      • Net weight: 1.4g

            Package

            • 1 * C02 FPV Micro Camera
            • 1 * Injection Molded Canopy
            • 1 * 1/4'' Camera Mounting hardware

                      $10.99
                      C02 FPV Micro Camera—
                      $10.99

                      Product Information

                      Shipping & Returns

                      Description

                      C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for  1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

                      Plug-N-Play Connector

                      C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

                      Bullet Points

                      • Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
                      • 1200TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image
                      • Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
                      • 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes
                      • The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

                          Specification

                          • Item: C02 Camera
                          • Image Sensor: 1/4" CMOS Sensor
                          • Horizontal: 1200TVL with Global WDR
                          • Signal System: NTSC
                          • Lens : 2.1mm(M8) FOV 160°
                          • S/N Ratio: >50db
                          • Electronic Shutter Speed: Auto
                          • Auto Gain Control (AGC): Auto
                          • Min. Illumination: [email protected]
                          • D-WDR: Auto
                          • Day/Night: Color
                          • Power: DC 3-5.5V
                          • Current: 110mA@5V / [email protected]
                          • Housing Material: ABS
                          • Dimension: 13*11mm
                          • Net weight: 1.4g

                                Package

                                • 1 * C02 FPV Micro Camera
                                • 1 * Injection Molded Canopy
                                • 1 * 1/4'' Camera Mounting hardware
