C03 FPV Micro Camera

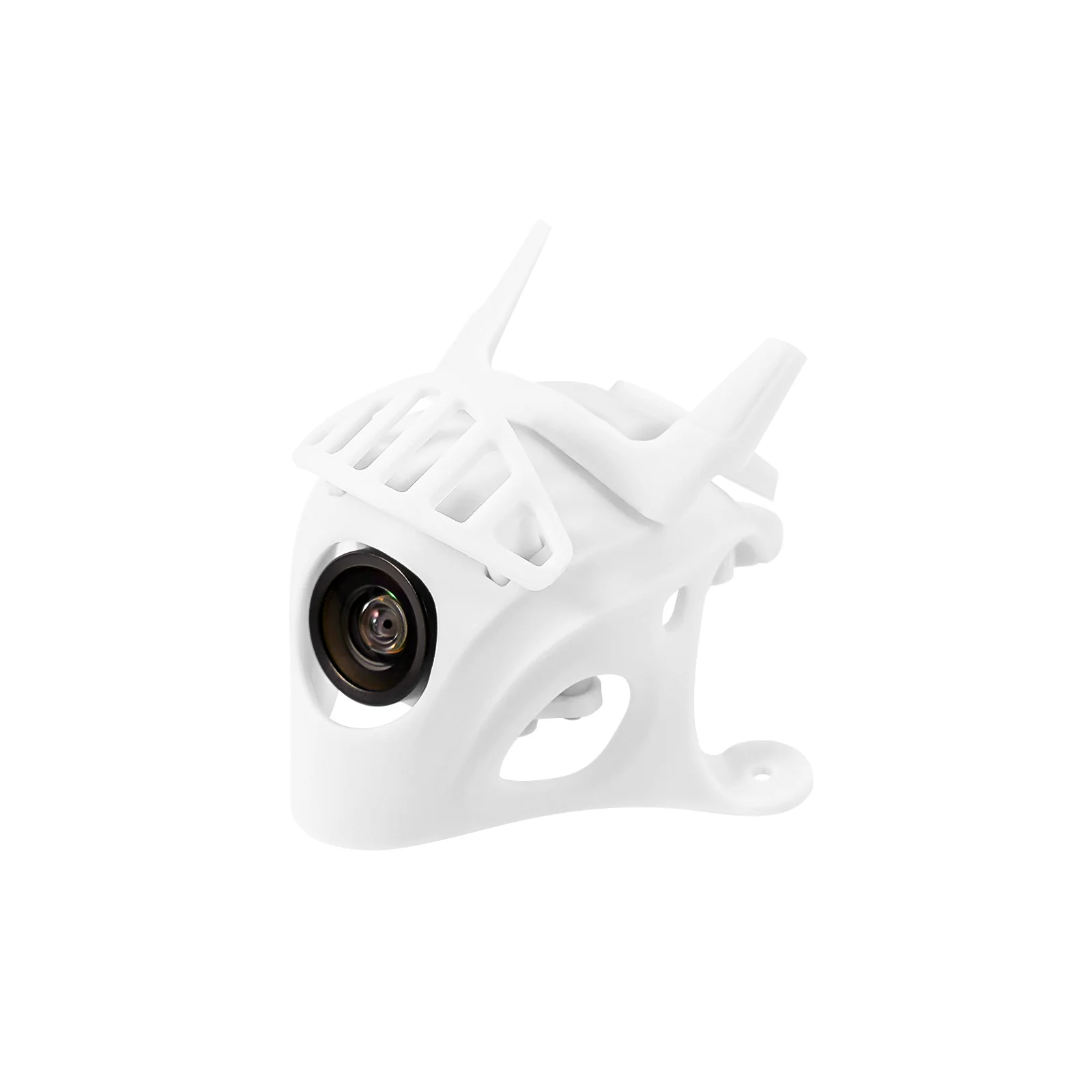

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.

Bullet Points

• Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
• Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
• 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specifications

• Item: C03 FPV Micro Camera
• Image Sensor: 1/3" CMOS Sensor
• Horizontal: 1200TVL with Global WDR
• Signal System: NTSC (4:3)
• Lens: 2.1mm(M7) FOV 160°
• S/N Ratio: >50db
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 100mA@5V / [email protected]
• Housing Material: ABS

• Dimension: 11*15*14mm

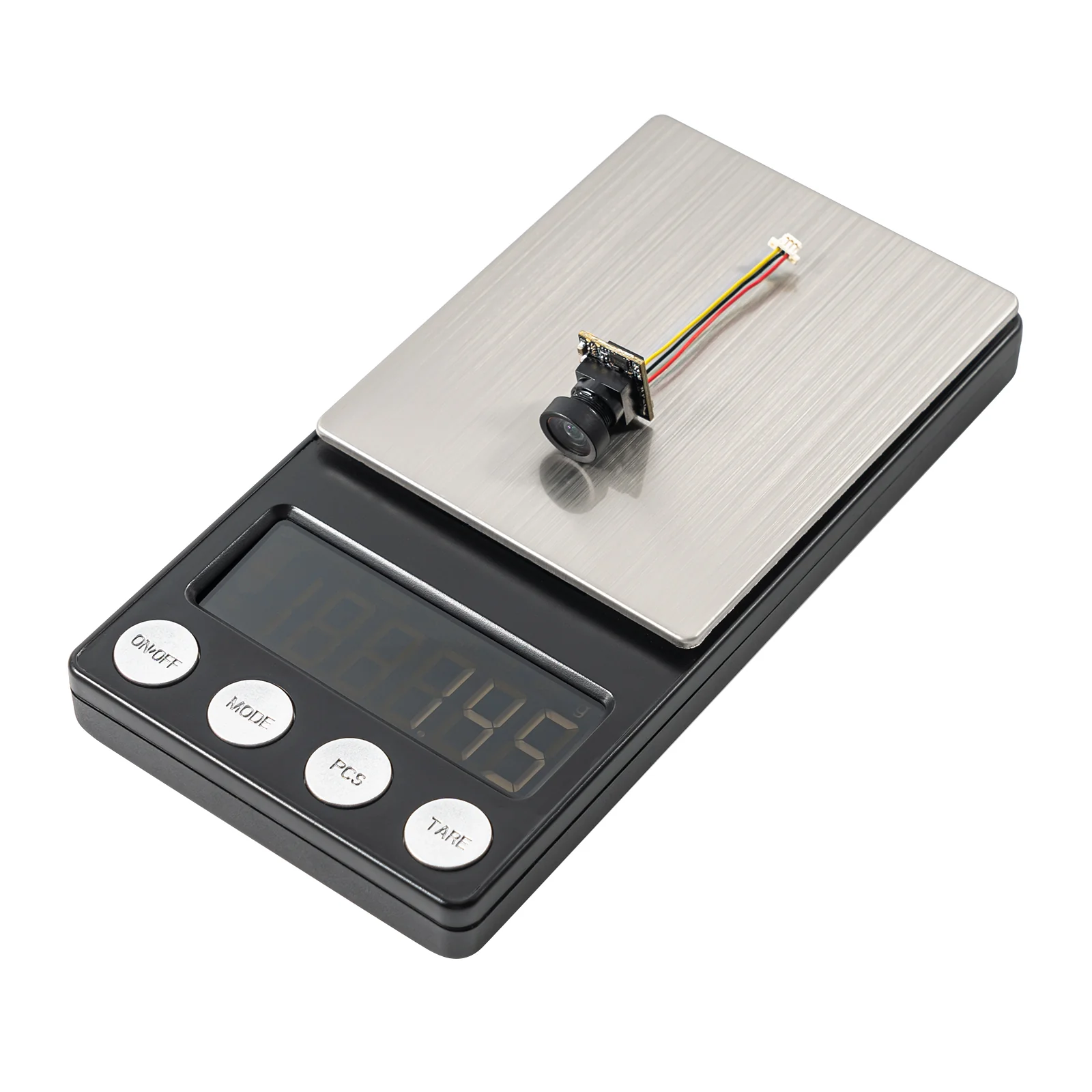

• Net weight: 1.45g

Diagram

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

• Canopy: BETAFPV Canopy for Micro Camera 2022
• VTX: BETAFPV M03 5.8G VTX
• FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
• Drones: Meteor65/75 drones, or other micro whoop drones in the market.

Package

• 1 * C03 FPV Micro Camera
• 1 * BETAFPV Micro Canopy
• 1 * 20° Lens Camera Mount for C02
• 1 * 20° Lens Camera Mount for C03
• 1 * 30° Lens Camera Mount for C03
• 3 * Decorative Parts
• 4 * M1.4*5 Screws (Sliver)
• 6 * M1.4*4 Screws (Black)
