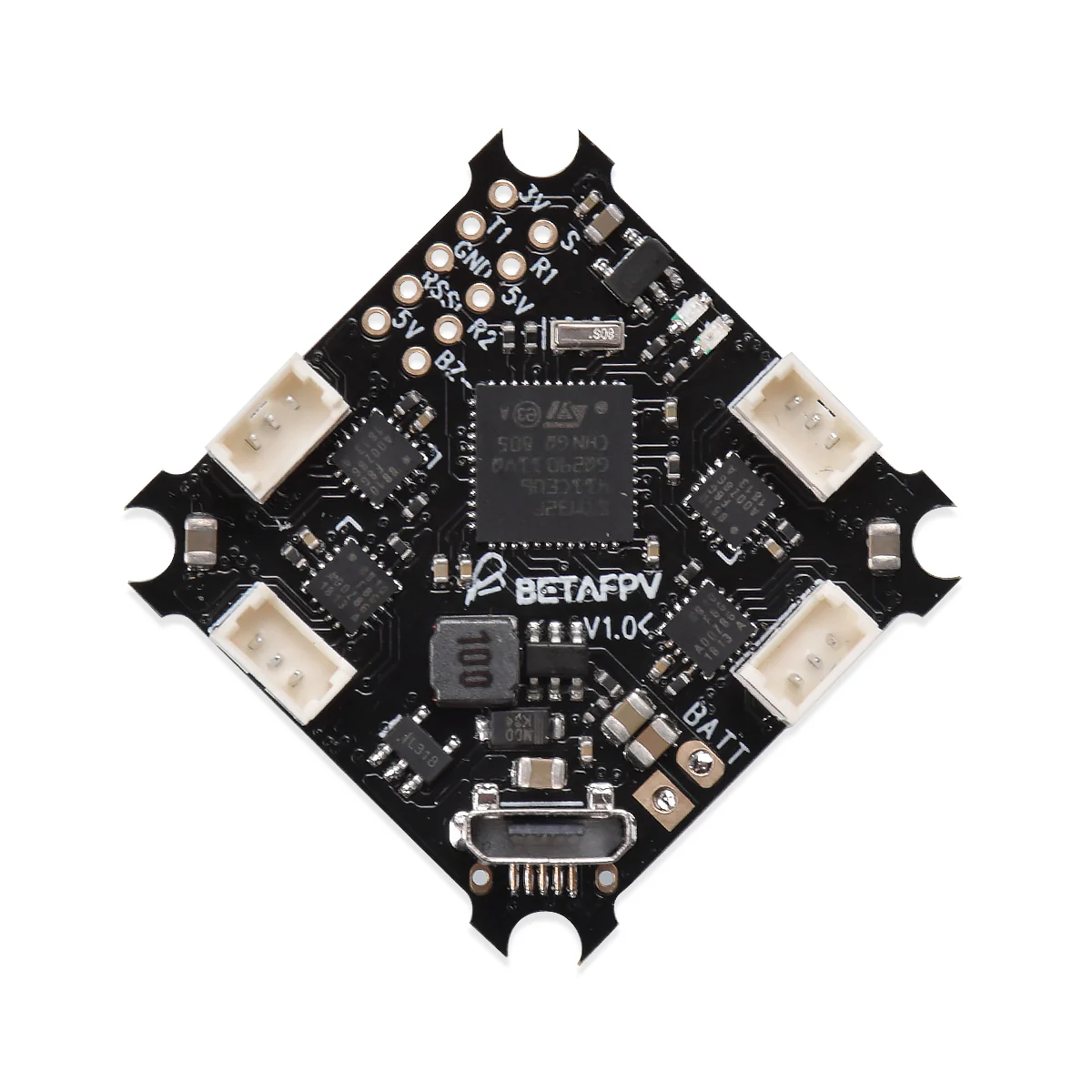

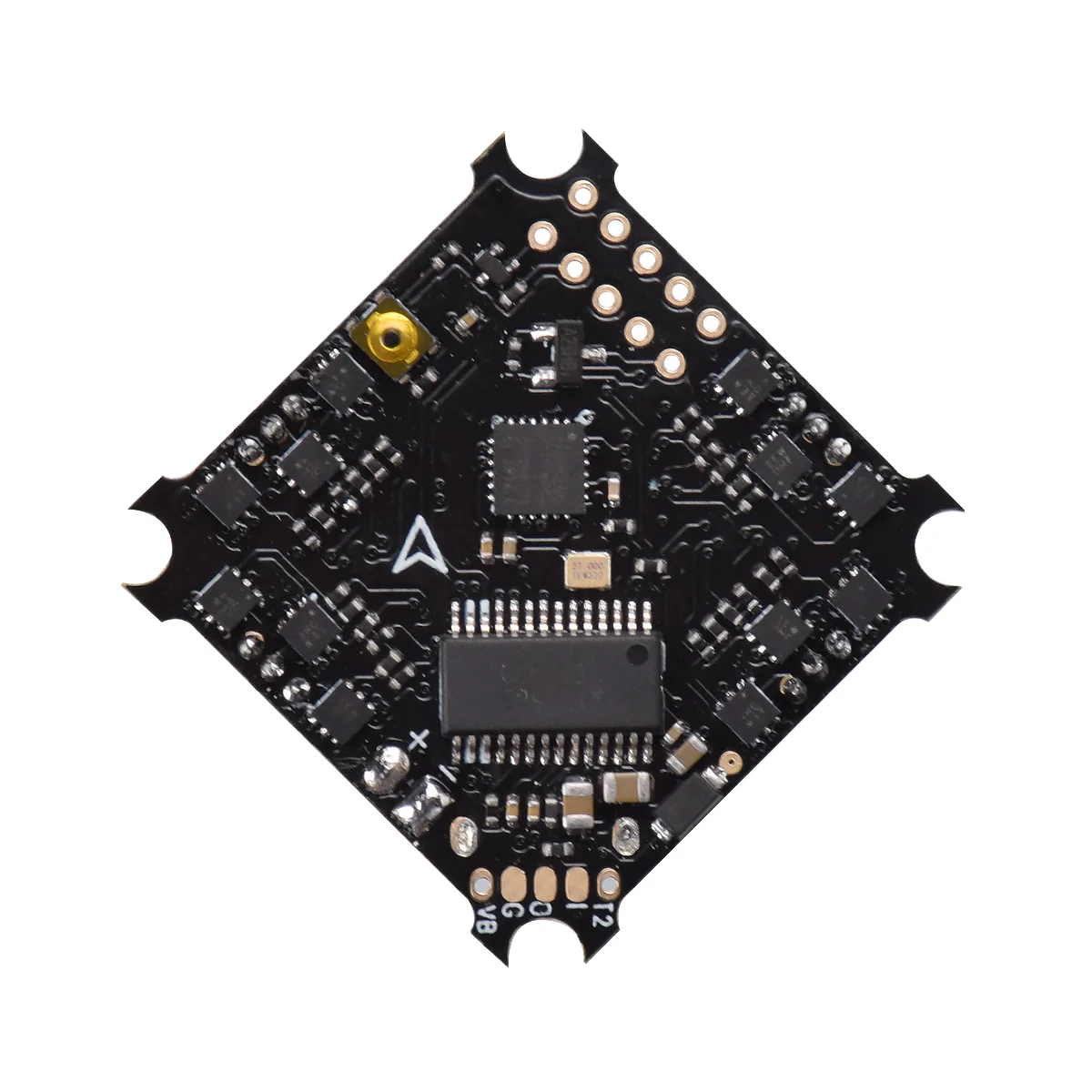

F4 1S Brushless Flight Controller (No RX+OSD)

The F4 1S brushless FC ((No RX+OSD) is clearance sale. If you need Frsky RX Version, please click here to reach out.

Ultra-compact with 3.3g weight(No include JST-PH  power cable), this FC is ready and waiting to take residence within your 1S micro FPV aircraft of choice, which could save much weight for a faster fly experience.

• Weight Comparison between F4 1S Brushless FC and Creazybee F3 FC

Comparison F3 Brushless FC & F4 Brushless FC

• Outlook Comparison

• Performance Comparison

SPECIFICATIONS OF FC

• CPU: STM32F411CEU6 (100MHZ )
• Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
• Size: 26mm x 26mm, fully compatible with the Inductrix quad frame, Beta65 Pro frame, Beta75 Pro frame, BWhoop B06 frame and mounting pattern
• Firmware version: betaflight_3.5.0_MATEKF411.hex
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

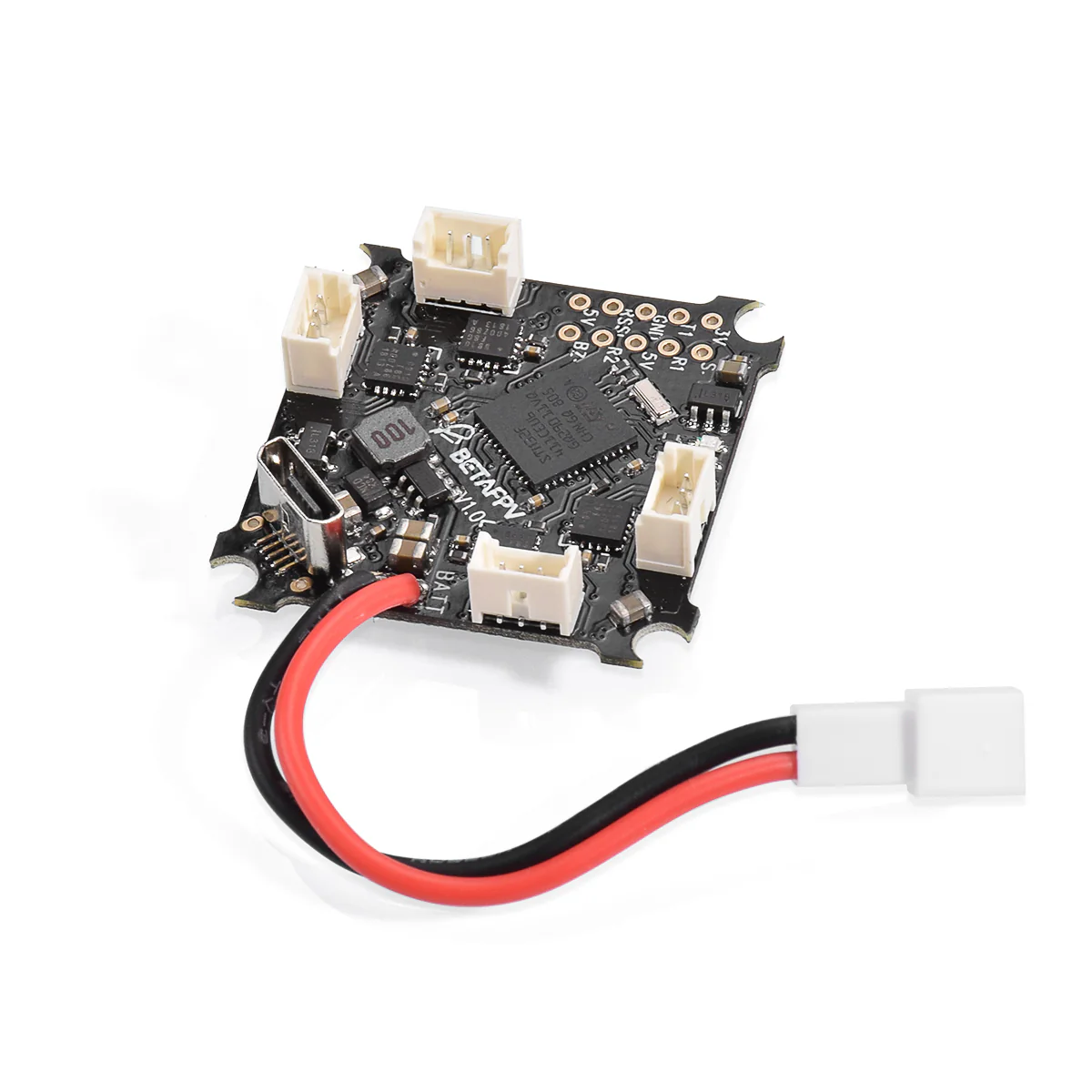

• Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
• Weight: 3.3g

SPECIFICATIONS OF ESC

• Power supply: 1S
• Current: 5A continuous and peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_L_5_REV16_6.HEX
• Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

HOW TO CONNECT THE RECEIVER

For the details about how to connect the receiver and configure in Betaflight, please check the F4 1S Brushless FC (No RX) Manual

RECOMMENDED PARTS LIST

• Frame:  Beta65 Pro frame / Beta75 Pro frame
• Props: 31mm 4-Blades props (for Beta65 Pro frame) / 40mm 4-blades props (for Beta75 Pro frame)
• Receiver: XM Receiver / XM+Receiver / Fullspeed DSMX Receiver / Futaba RX800-PRO Receiver /  Flysky RX2A Pro Receiver
• Motors: 0703 motors
• Battery: 550mAh 1S batteries / 300mAh 1S Battery

PACKAGE

• 1 * F4 1S brushless flight controller
• 4 * M1.2x4mm screws
• 4 * M1.4x5mm screws
• 4 * Anti-vibration ruber dampers
