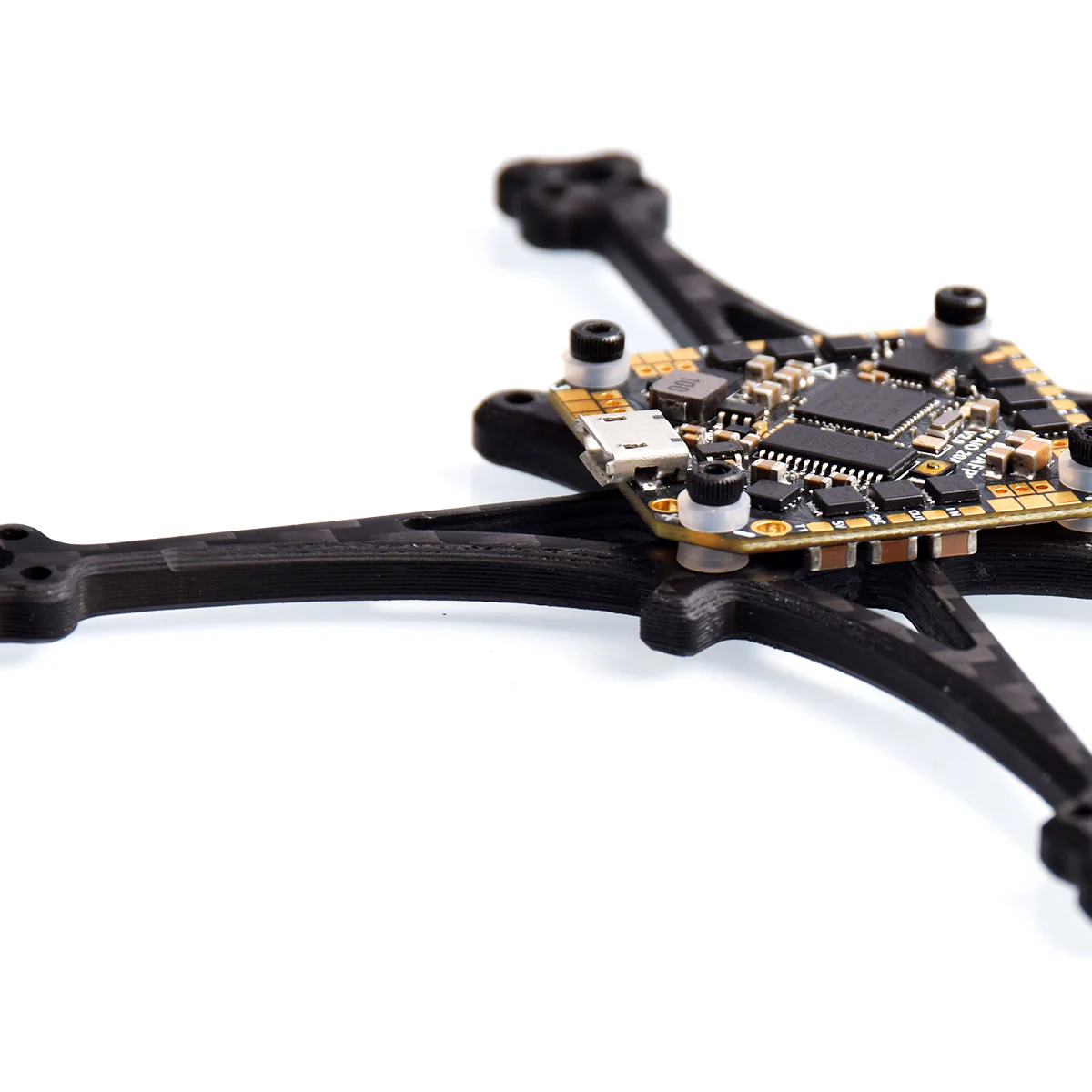

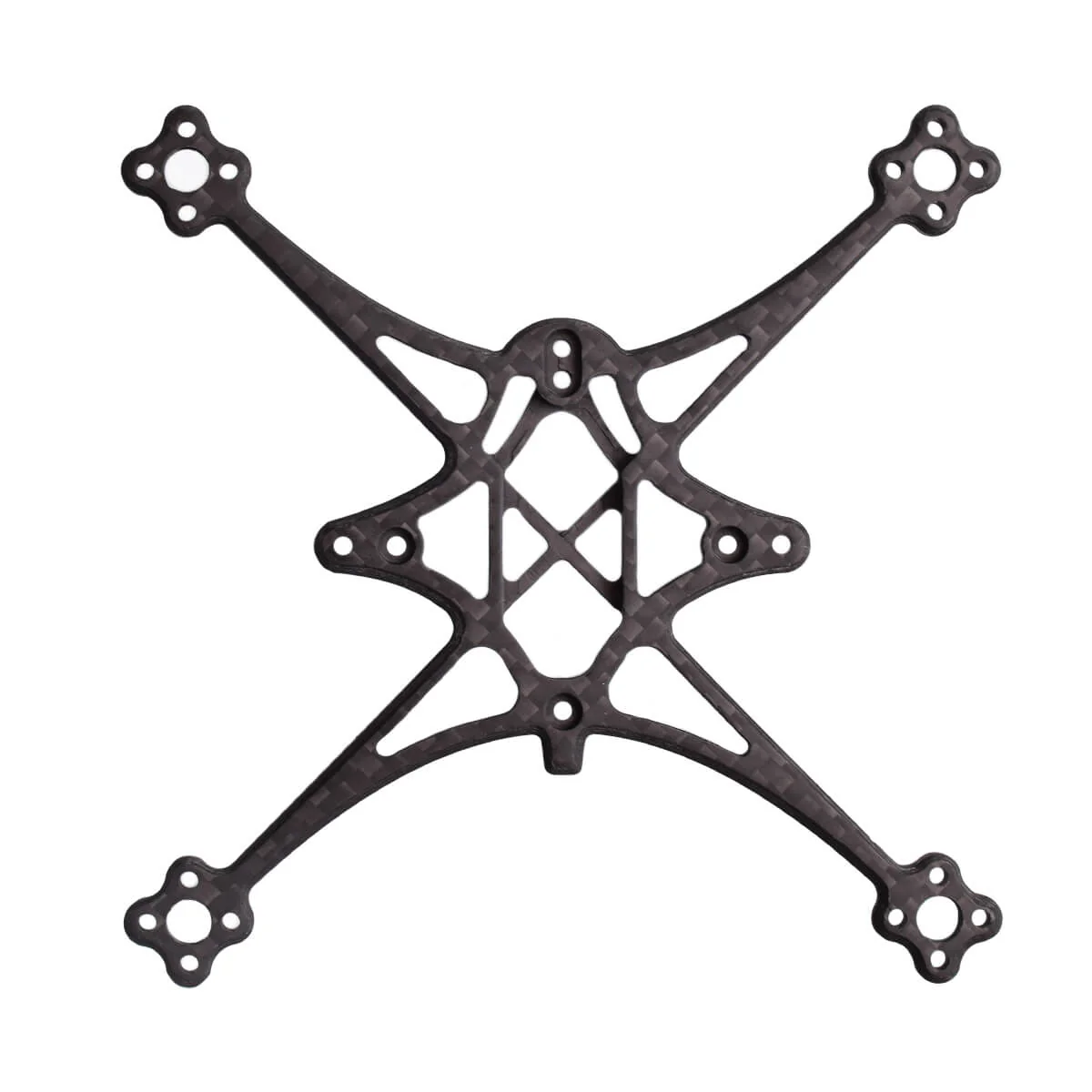

HX115 T700 Carbon Fiber Frame

HX115 frame adopts the spraying process with an insulating effect on frame surface, effectively reducing the possibility of component damage caused by electric current.

Bullet Point

• Newly structure design, R0.5 chamfer, and 4mm thickness make HX115 T700 carbon unibody frame become ultimate durability and aesthetic while maintaining minimal weight
• Apply upgraded T700 carbon fiber material, stronger crashworthiness compared to the initial T300 frame.
• Package includes no-slip rubber pads, screws and battery cable tie for easier self-assembly

Specification

• Material: Carbon Fiber
• Diagonal motor distance: 115mm
• Thickness: 4mm
• Motor mounting hole: M2*4
• FC mounting hole: 26.5mm x 26.5mm

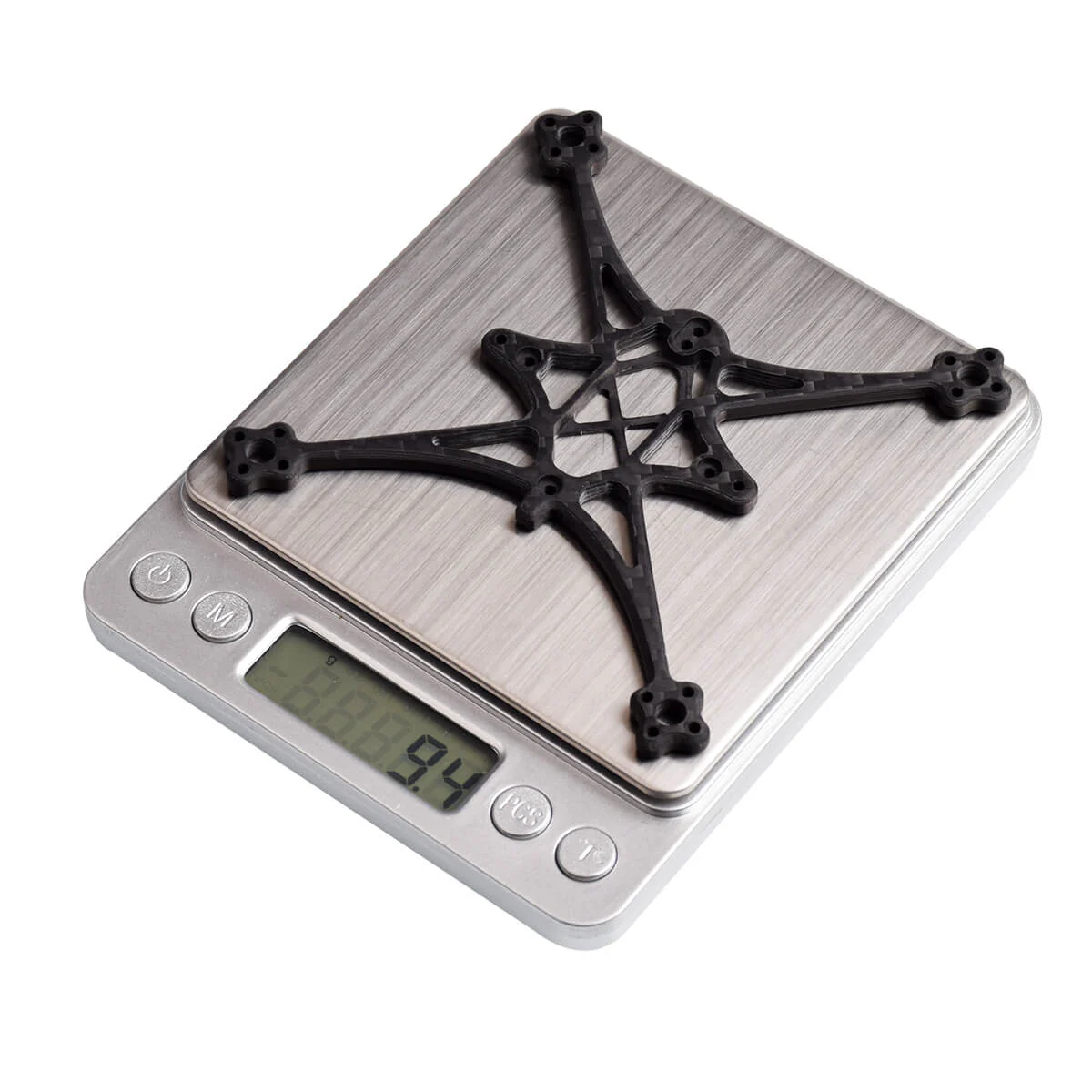

• Weight: 9.4g

Recommended Parts

• Propellers: HQ 3020 2-Blade Props / HQ 3030 3-Blade Props
• Canopy: Canopy for HX115
• Motors: 1105 5000KV Motors / 1106 5000KV Motors / 1204 5000KV Motors
• Batteries: 450mAh 4S battery / 450mAh 3S battery
• FC&ESC: Toothpick F4 2-4S 12A AIO FC
• Drone: HX115 FPV Toothpick Drone / HX115 HD Toothpick Drone

Package

• 1 * HX115 Carbon Fiber Frame
• 1 * 150mm Battery Cable Tie
• 1 * No-Slip Rubber Pads
• 1 * Pack of Screws
• 1 * Ruber dampers
• 8 * HX115 aluminum column
