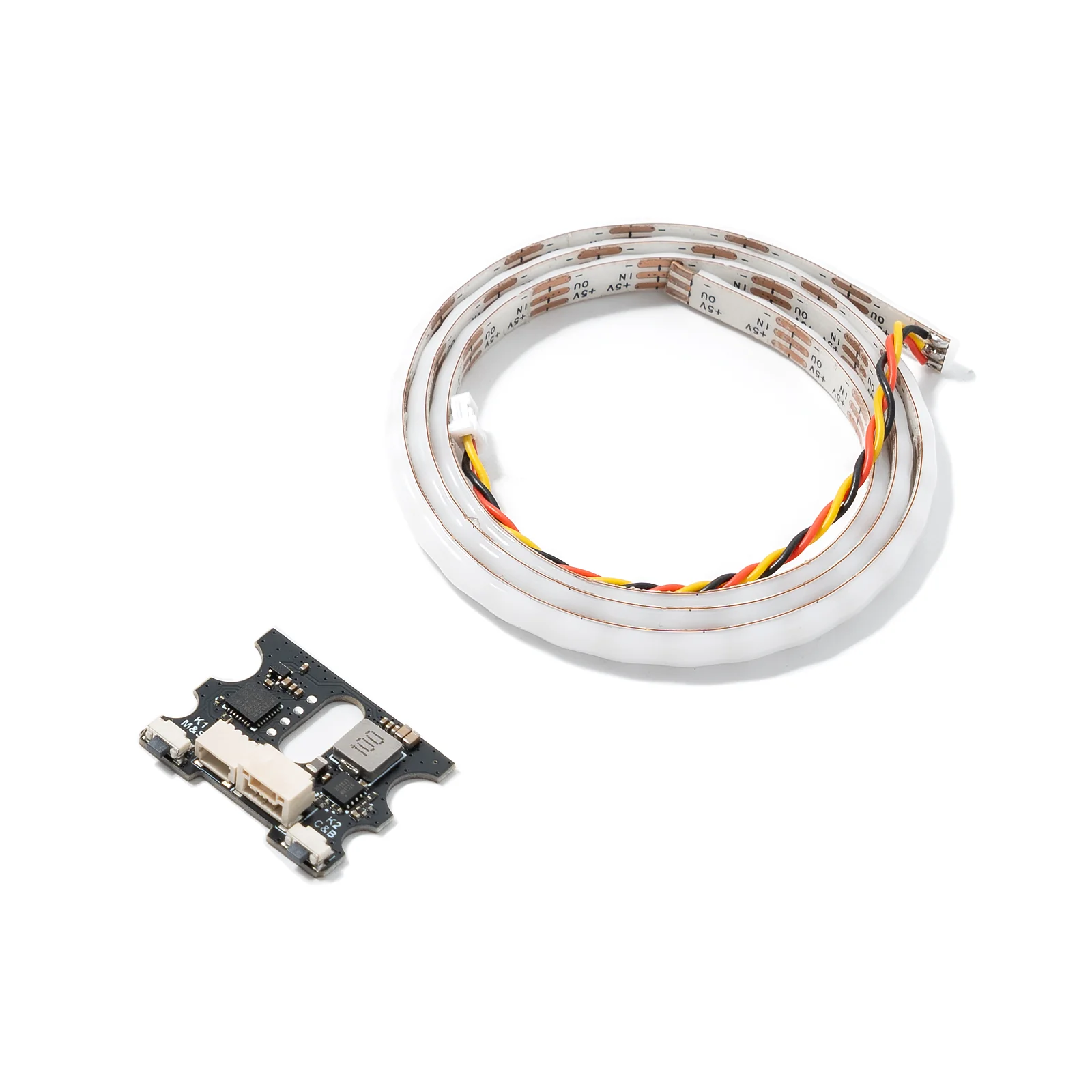

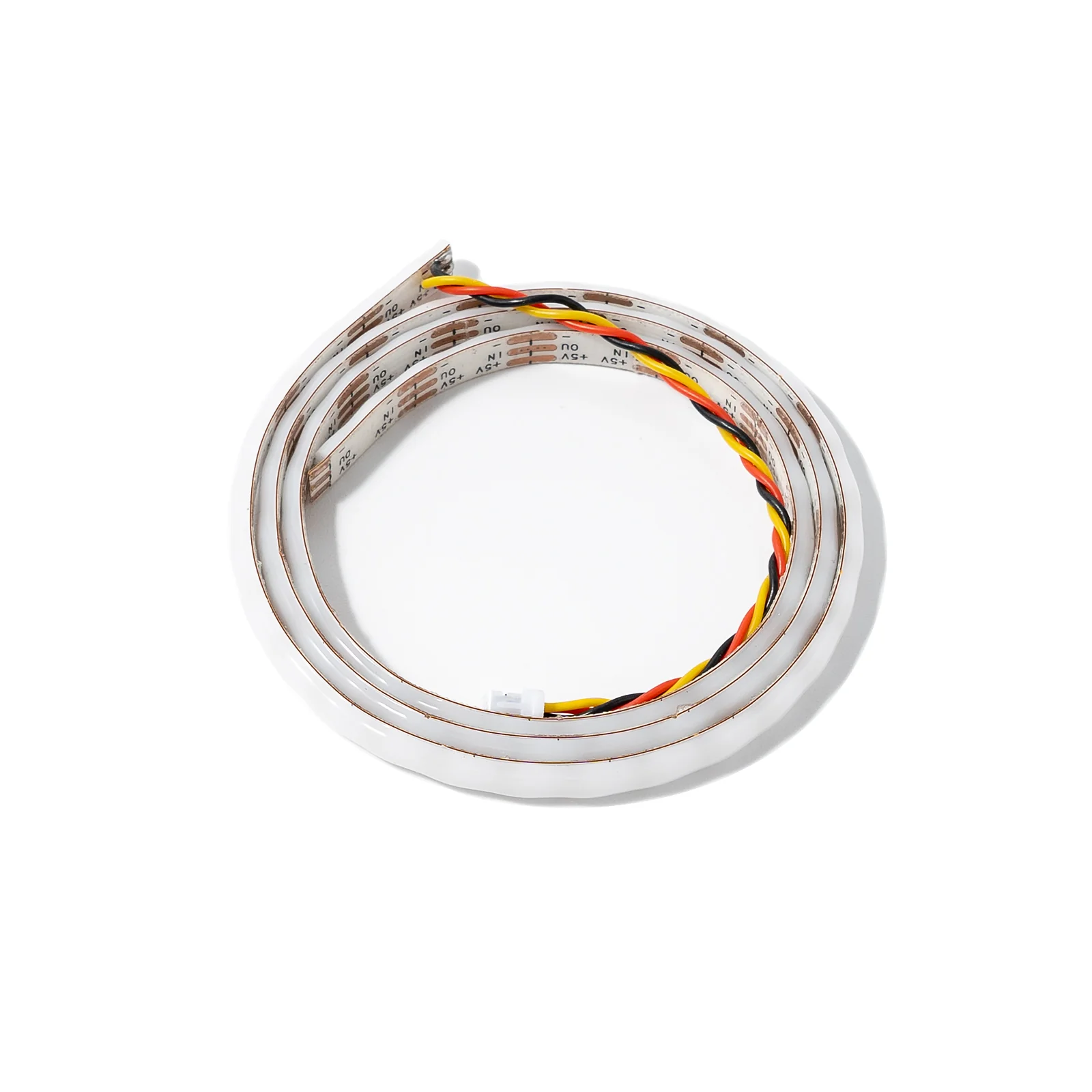

NightFire RGB LED Strip

Elevate your nighttime flying with the NightFire RGB LED Strip—the same premium lighting featured in the Pavo20 Pro NightFire Limited Edition. Designed for enhanced visibility and style, it features vibrant RGB LEDs that bring your whoop to life with a stunning spectrum of colors and dynamic display modes. Easily switch between 10 preset lighting effects and 7 colors by pressing the buttons. The NightFire RGB LED Strip is built to shine brilliantly against the night sky. Light up your flight path like never before.

Specifications

RGB Controller

• Input Voltage: 6V-18V (2S-4S)
• Output Voltage: 5V
• Output Current: 3A
• Beads: WS2812B RGB colorful LED
• Bead Count: Max. 128
• Input Connector: GH1.25mm 3-Pin
• Input/Output Connector: SH1.0mm 3-Pin

Diagram

RGB Controller Instructions

KEY1	Long Press	Switch Mode	10 modes: Betaflight Mode Solid Color Mode Single Color Breathing Mode Single Color Marquee Mode Double-Sided Marquee Mode Single Color Oriented Mode Single Color Growth Mode Rainbow Breathing Mode Rainbow Gradient Mode Double-Sided Rainbow Mode
	Short Press	Switch Speed	Fast, Medium, Slow
KEY2	Long Press	Switch Brightness	100%, 75%, 50%, 25%
	Short Press	Switch Color	White, Red, Yellow, Blue, Green, Cyan, Magenta, Off

Recommended

Quadcopter: Pavo20 Pro II, Pavo20 Pro, Pavo Pico II

Package

NightFire RGB LED Strip (LED Strip Version)

• 1 * RGB LED Strip (500mm)
• 1 * 3-Pin Cable
