Pavo360 Frame Kit

This frame kit is a new, ultra-thin, and flat frame design for Pavo360, which perfectly invisible the drones when recording a video. With the material of high-quality carbon fiber, the frame is not only secured and well built but also weighs light. Response very fast with F722 AIO Brushless FC 35A(BLHeli_S) and 2204-2400KV Motor. Pilots will enjoy a flight experience with Pavo360.

Note: The Pavo360 frame kit is designed for SMO 360 panoramic camera. Insta360 ONE R camera is not compatible with this frame.

Bullet Point

• Built-in carbon fiber and reserve a storage room for the camera, the Pavo360 frame has a more concise appearance and is more convenient for installation.
• Made of high-quality PA12 material, the Pavo360 frame kit has higher abrasion resistance, toughness, and shows excellent impact resistance in drop & impact tests.

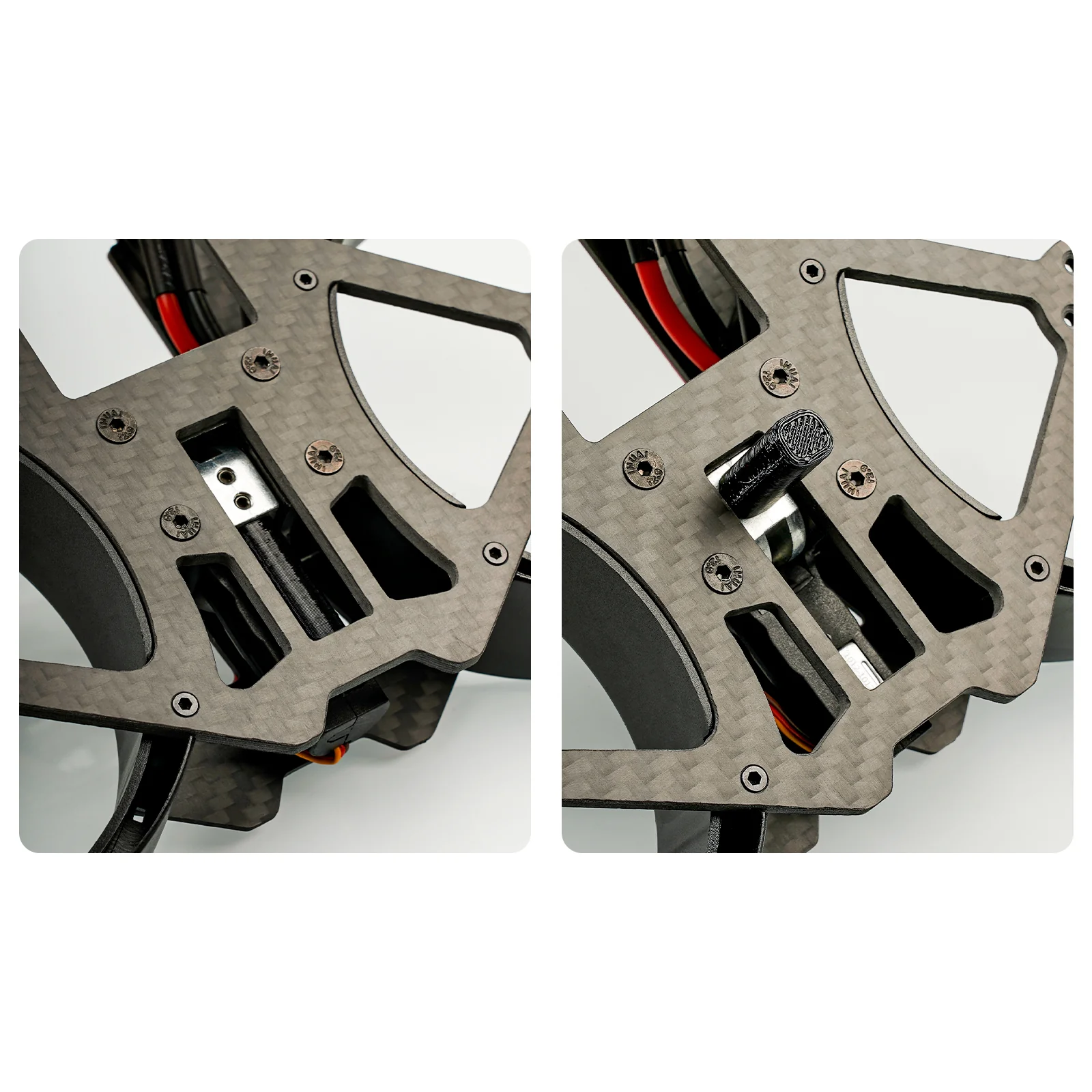

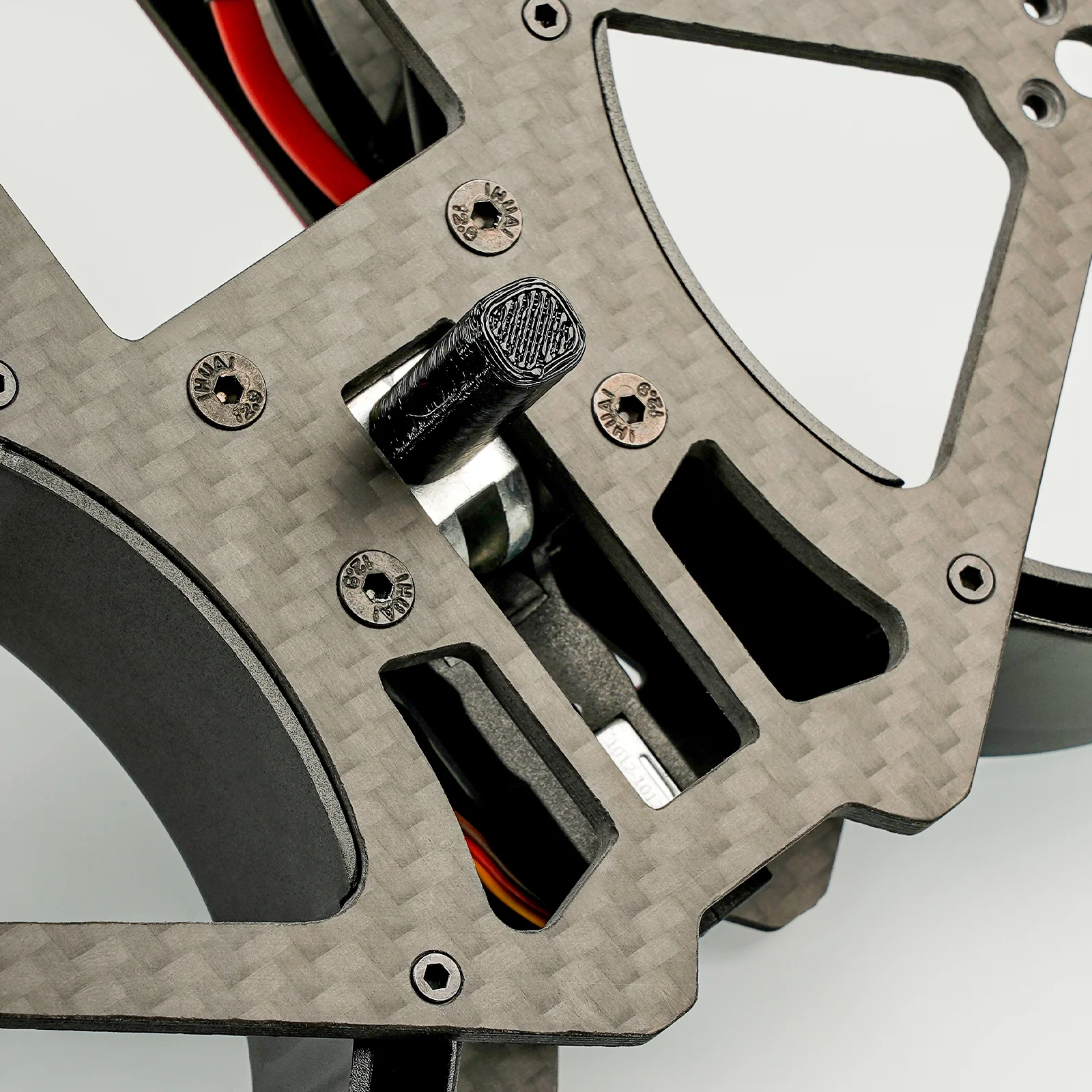

• By mounting the landing gear, pilots can control its extension and retraction, which keeps safety when the drone is landing.
• Recommend 3 inches 5 blades propeller and 2204-2400KV Motor for this 168mm wheelbase frame. Pilots will enjoy a flight experience with Pavo360.
• The ultra-thin and flat frame design with SMO 360 Camera (not included) makes it possible to record and enjoy the 360 videos without any unseen areas.

Note: Please make sure the battery is suitable with battery bay on this frame,  which is 59x31x26mm. High recommending 850mAh 3S 75C lipo battery.

Specification

• Item: Pavo360 Frame Kit
• Wheelbase: 168 mm
• Color: Black
• Material: PA12

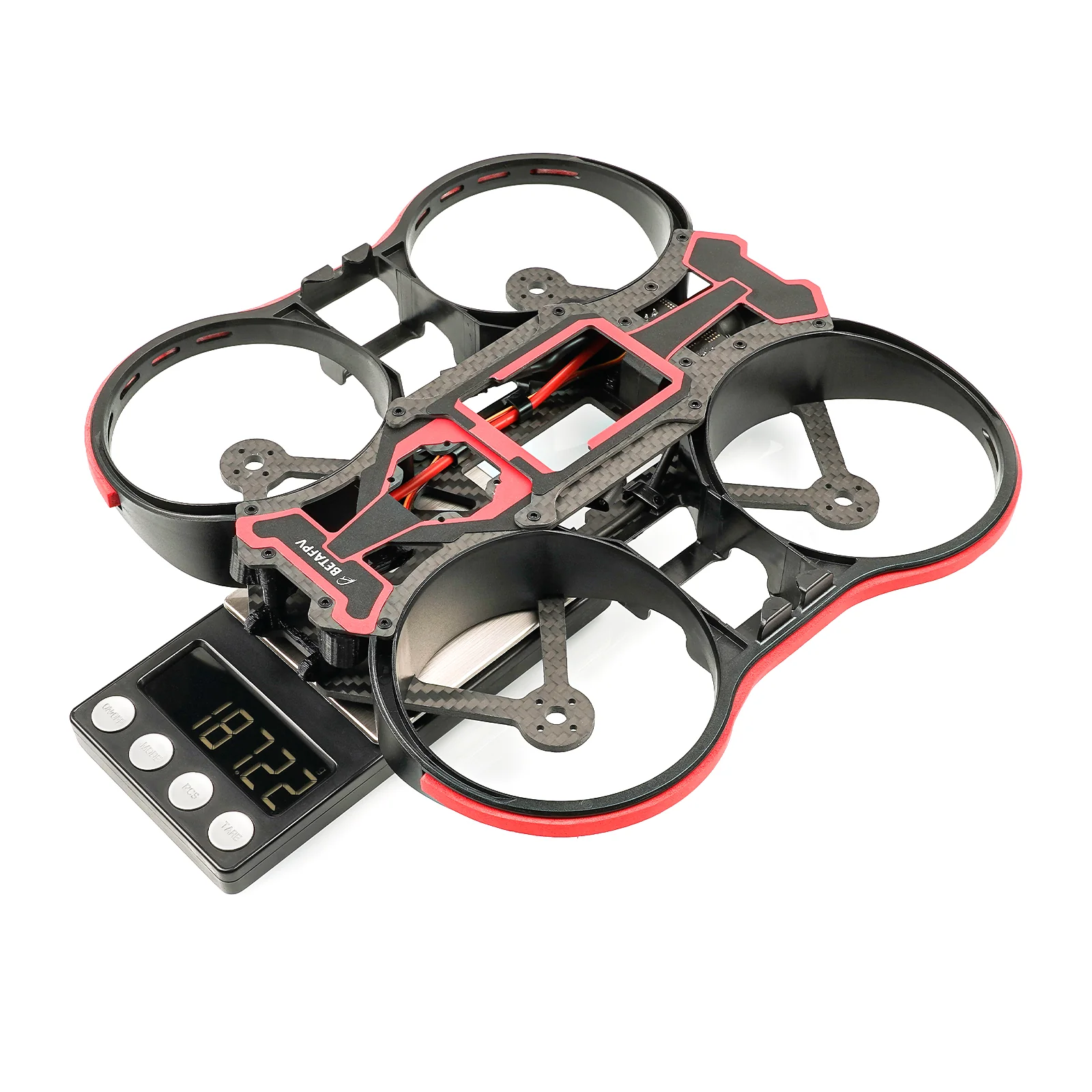

• Weight: 187.22 g
• Recommend Motor: 2204-2400KV Motor

• Recommend FC: Toothpick F722 2-6S AIO Brushless Flight Controller 35A(BLHeli_S)

• Recommend Camera: SMO 360
• Recommend Battery: 850mAh 3S 75C Lipo Battery (2PCS) x 2

• Propellers: Gemfan D76 5-Blade Propellers

Package

• 1 * Pavo360 frame kit
• 1 * Top Plate
• 1 * Bottom Plate
• 1 * Camera Mounting Plate
• 1 * Landing Part
• 1 * Battery Elimination Circuit (BEC)
• 2 * Aluminum Columns
• 2 * 3D Printing Holder
• 2 * Capacitors
• 2 * Battery Cables
• 2 * Wires
• 1 * Pack of Screws and Nut
