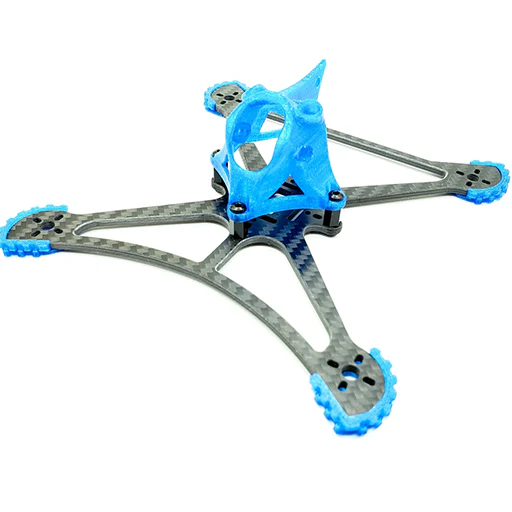

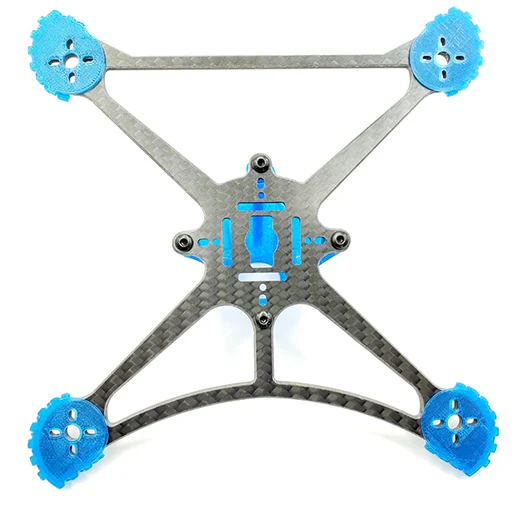

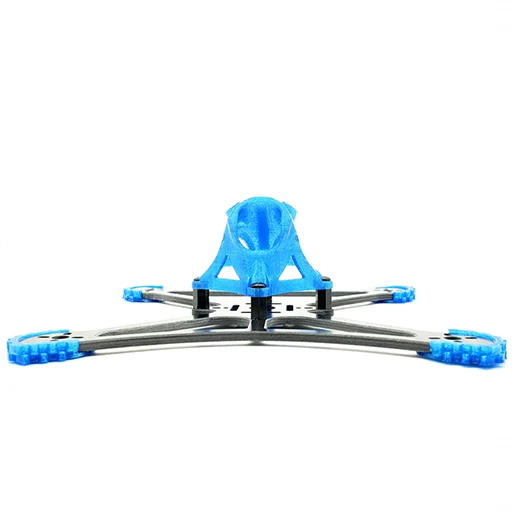

TWIG Mutant 4 4'' Frame Kit (True-X)

The TWIG MUTANT 4 is a mutated TWIG frame that Racer X FPV has made some exciting new changes to as they did the new TWIG XL line up of frames. The frame is premium 3mm thick high-grade T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm. The frame is 160mm motor post to motor post and swing up to 4'' props.

The motor mounting is for 4-hole 9x9 or 12x12 motor mounts. The frame can accommodate a 20x20 stack or a whoop toothpick AIO. With the 20A 2-4S whoop toothpick AIO FC, it allows us to swing larger 4’ props as well as even use larger amp draw motors such as 1404 / 1505 motor.

See more about the Mutant 4 at Racer X FPV!
Check out the Twig Builders Group on FB!

Bullet point

• High grade 3mm thick T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm
• 20x20 or whoop/toothpick stack mounting
• Slotted motor mounts for 9x9 to 12x12mm motors
• 5-55 degree camera angle adjustment

Specification

• Model: TWIG Mutant 4 TRUE-X
• Size: 4 inch
• Material: T700 Carbon Fiber
• Wheelbase: 160mm
• Weight: 21.2
• Thickness: 3mm

Recommended parts

• Flight Controller: Toothpick F4 20A AIO FC
• Motor: 1404 3800KV Motors / 1505 motor
• Compatible Propellers: 4'' Props
• Battery: 450mAh 3S 75C Lipo Battery / 450mAh 4S 75C Lipo Battery

Package

• 1 * TWIG MUTANT 4 T700 Chamfered Frame
• 1 * 30mm X 30mm X 3mm Premium Umma Grip Battery Pad
• 1 * Custom Racer X FPX Premium, Battery Strap

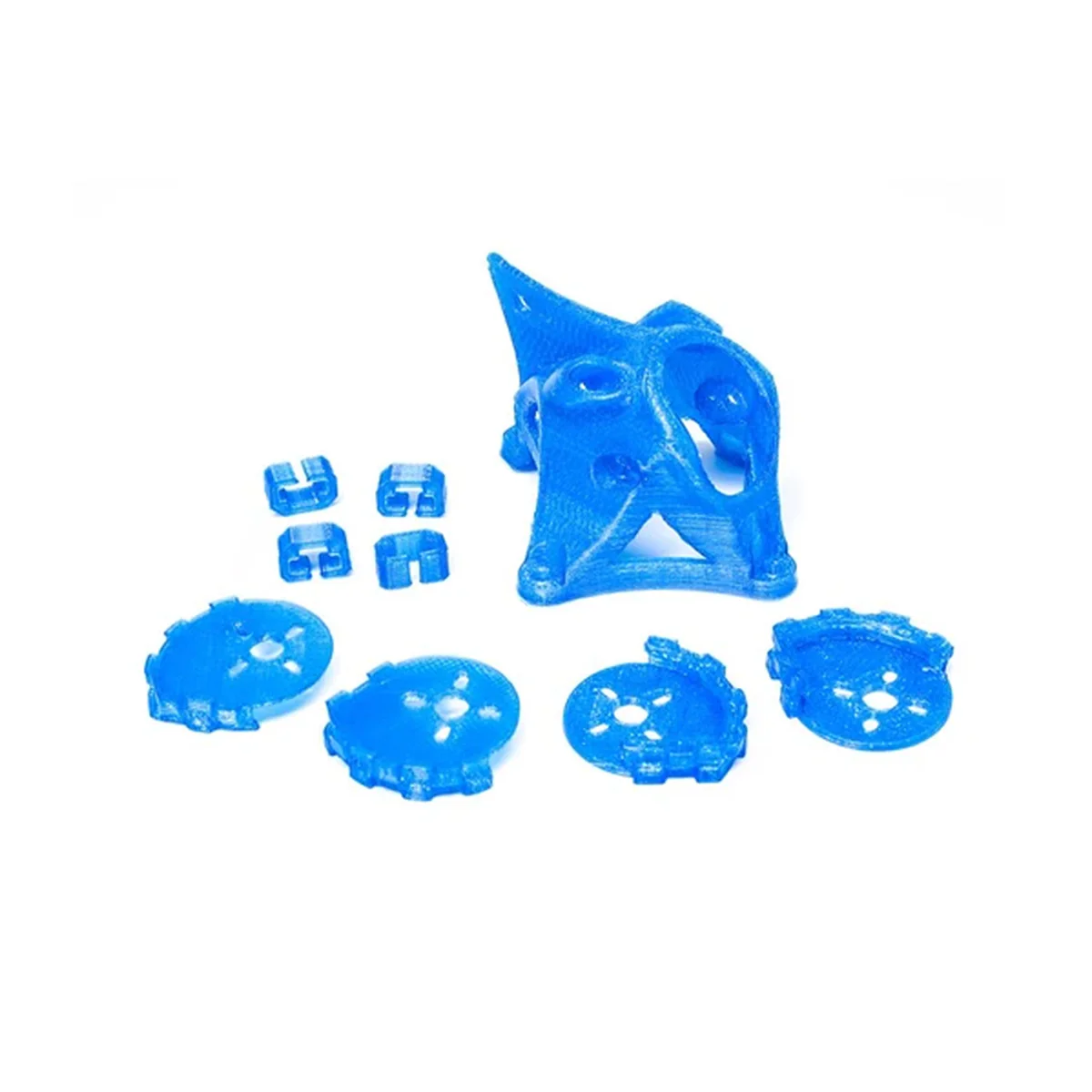

• 1 * TPU Canopy Blue
• 4 * TPU Arm Guards
• 4 * TPU Motor Wire Clips
• 4 * M3x6mm Black Nylon Standoffs
• 4 * M3X8mm Black Nylon Standoffs
• 8 * M3x6mm Black Button Head Socket Cap Screws
• 4 * M2X16mm Black Button Head Socket Cap Screws
• 8 * M2 Black Nylon Nuts
• 4 * HQ T4X2.5 Prop (2 CW,2 CCW)
