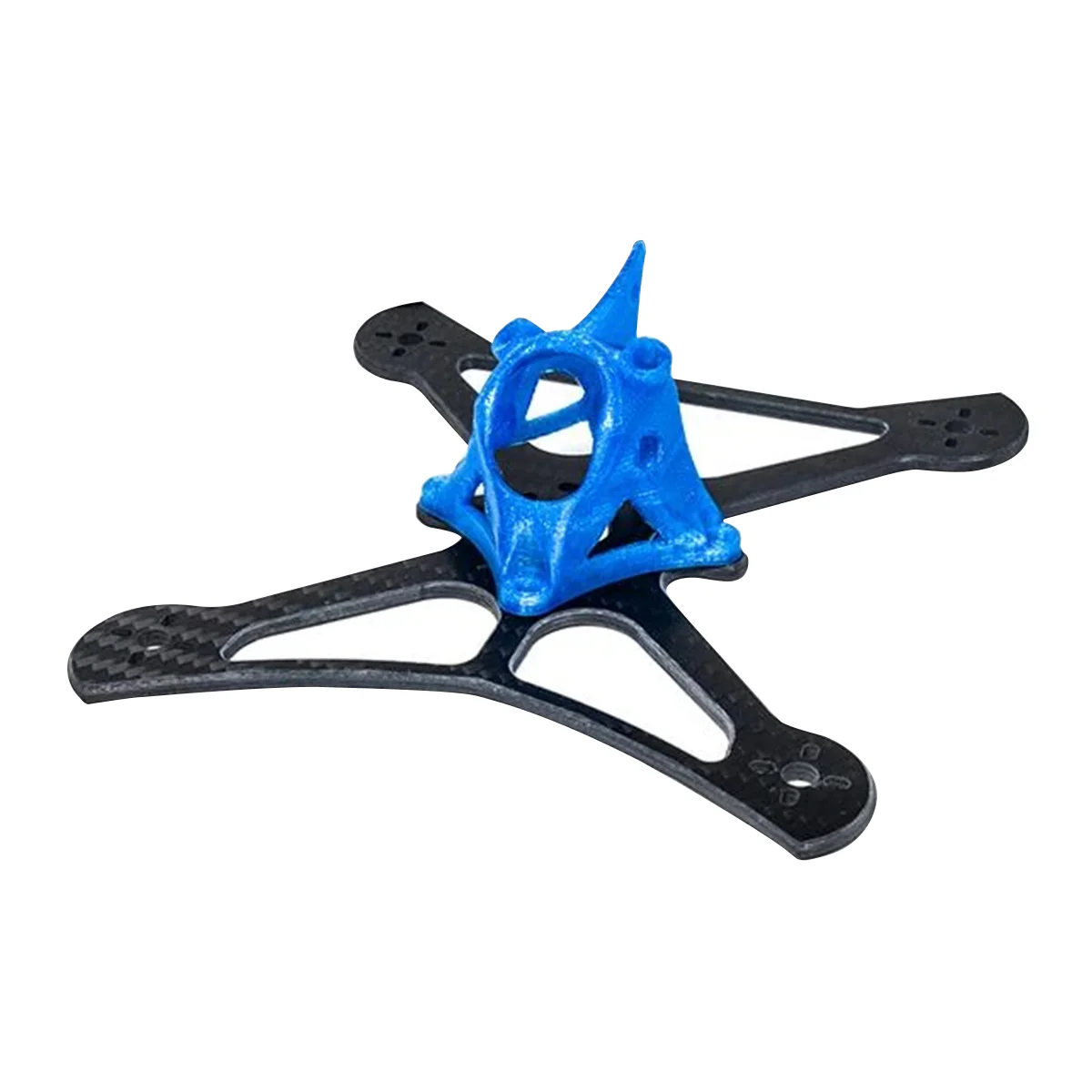

TWIG XL 3" Frame Kit

TWIG XL is a larger version of our original TWIG frame. All the XL frames are premium 3mm thick, high grade T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm. All the frames are approximately 140mm motor post to motor post and swing up to 3'' props. The frames accommodate motor mounting for 4-hole 9x9 or 12x12 motor mounts. TWIG XL 3'' FPV Toothpick Quad is built basced this frame and with the Caddx Ratel Camera, 1404 3800KV Brushless Motors, 12A Toothpick F4 2-4S AIO FC.

See more about the TWIG XL at Racer X FPV!
Check out the Twig Builders Group on FB!

Bullet point

• High-grade 3mm thick T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm
• 20x20 or whoop/toothpick stack mounting
• Slotted motor mounts for 9x9 to 12x12mm motors
• 5-55 degree camera angle adjustment

Specification

• Model: TWIG XL TRUE-X
• Size: 3 inch
• Material: T700 Carbon Fiber
• Wheelbase: 140mm
• Weight: 21.9
• Thickness: 3mm

Is the original TWIG XL frame compatible with 3.5inch propellers already? The answer is YES.

High recommend the 2021 newest 3.5" propellers for this classical frame. Gemfan 3520 3-Blade propellers and HQ 3520 3-Blade propellers.

Recommended parts

• Flight Controller: Toothpick F4 12A AIO FC / 20A F4 2-4S AIO FC V3
• Motor: 1404 3800KV Motors / 1204 5000KV Motors
• Compatible Propellers: 3'' Props, 3016 3-Blade Propellers, Gemfan 3520 3-Blade propellers and HQ 3520 3-Blade propellers
• Battery: 450mAh 3S 75C Lipo Battery / 450mAh 4S 75C Lipo Battery
• Canopy: X-Knight canopy

Package

• 1 * TWIG XL Premium T700 Chamfered Frame
• 1 * 30mm X 30mm X 3mm Premium Umma Grip Battery Pad
• 1 * Custom Racer X FPX Premium, Battery Strap
• 1 * TPU Canopy Blue
• 4 * TPU Arm Guards Blue
• 4 * TPU Motor Wire Clips
• 4 * M3x6mm Black Nylon Standoffs
• 4 * M3X8mm Black Nylon Standoffs
• 8 * M3x6mm Black Button Head Socket Cap Screws
• 4 * M2X16mm Black Button Head Socket Cap Screws
• 8 * M2 Black Nylon Nuts
• 4 * HQ T3X2.5X3 Prop (2 CW, 2 CCW)
